APW12 8000W PSU Installation Guide for Antminer S19Pro
Cryptocurrency mining has evolved into a highly competitive industry where efficiency, reliability, and performance are paramount. At the heart of any successful mining operation lies the power supply unit (PSU), a critical component that ensures stable and consistent power delivery to mining hardware. The APW12 8000W PSU is a state-of-the-art solution designed specifically for high-performance mining rigs like the Bitmain Antminer S19Pro. This installation guide will walk you through the setup process while highlighting the product’s key features and advantages, ensuring you can maximize your mining potential.
Product Introduction: The APW12 8000W PSU

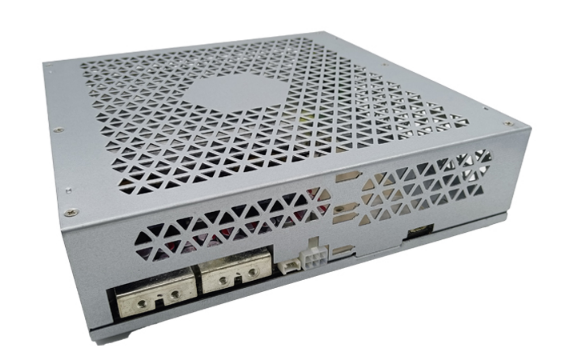

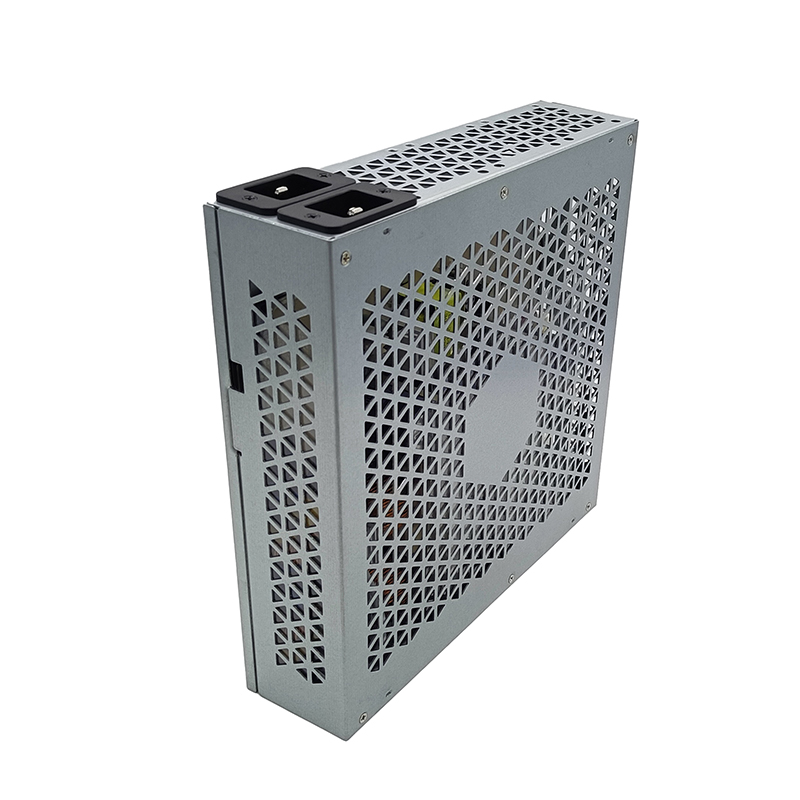

The APW12 8000W PSU is a professional-grade power supply engineered to meet the demanding needs of modern cryptocurrency mining operations. With a robust output of 8000W, it is specifically optimized for the Bitmain Antminer S19 series, including overclocked and immersion-cooled setups. This PSU stands out for its industrial-grade performance, advanced cooling capabilities, and comprehensive protection mechanisms, making it an ideal choice for both large-scale mining farms and smaller operations.
Key Specifications
- Power Output: 8000W
- Input Voltage Range: 260V to 305V
- Operating Temperature Range: -20°C to 45°C
- Weight: 2.4 kg
- Protection Features: Short circuit, overcurrent, overvoltage, and overtemperature safeguards
The APW12 8000W PSU is purpose-built for immersion cooling environments, addressing the growing demand for efficient thermal management in high-performance mining setups. Its compact design and lightweight construction ensure easy integration into existing systems without compromising on reliability or durability.
Product Advantages
1. Advanced Cooling Capability
One of the standout features of the APW12 8000W PSU is its compatibility with immersion cooling systems. Immersion cooling has emerged as a game-changer in cryptocurrency mining, offering superior thermal management compared to traditional air cooling methods. The APW12 is specifically engineered to operate efficiently in these environments, ensuring stable performance even under extreme conditions.
2. Optimized for Antminer S19 Series
The APW12 is tailor-made for the Bitmain Antminer S19 and S19Pro models, including overclocked configurations. Overclocking can significantly enhance mining efficiency but places additional demands on the power supply. The APW12 delivers consistent, high-quality power to support these increased loads, ensuring optimal performance and longevity of your mining hardware.
3. Comprehensive Protection Suite
Mining operations often run 24/7, exposing equipment to potential risks such as power surges, overheating, and short circuits. The APW12 incorporates a robust protection framework that includes:
- Output Short Circuit Protection: Prevents damage in case of a short circuit.
- Overcurrent Protection: Safeguards against excessive current draw.
- Overvoltage Protection: Protects against voltage spikes.
- Overtemperature Protection: Ensures safe operation even in high-temperature environments.
These features work in tandem to protect both the PSU and the connected mining hardware, reducing downtime and maintenance costs.
4. Industrial-Grade Performance
The APW12 is designed for professional mining operations, delivering a consistent 8000W output with a wide input voltage range (260V to 305V). This makes it suitable for industrial facilities where power conditions may vary. Additionally, its broad operating temperature range (-20°C to 45°C) ensures reliable performance in diverse climates, from freezing cold to scorching heat.
5. Environmental Adaptability
Whether your mining facility is located at sea level or high-altitude regions, the APW12 is up to the task. It can operate at altitudes of up to 2000 meters and withstand humidity levels of 0-90%, making it a versatile choice for various geographic locations.
Installation Guide for Antminer S19Pro
Setting up the APW12 8000W PSU with your Antminer S19Pro is a straightforward process, but it requires careful attention to detail to ensure safety and optimal performance. Follow these steps to get started:
Step 1: Unpack and Inspect the PSU
Before installation, carefully unpack the APW12 8000W PSU and inspect it for any visible damage. Ensure all components, including the power cables and connectors, are included and in good condition.
Step 2: Prepare the Mining Environment
Ensure your mining setup is ready to accommodate the APW12. If using immersion cooling, verify that the tank and cooling fluid are properly prepared. For traditional setups, ensure adequate ventilation to prevent overheating.
Step 3: Connect the PSU to the Antminer S19Pro
- Locate the power input ports on your Antminer S19Pro.
- Connect the APW12’s output cables to the corresponding ports on the miner. Ensure the connections are secure to avoid power interruptions.
Step 4: Connect the PSU to the Power Source
- Plug the APW12’s input cable into a compatible power source. Ensure the voltage matches the PSU’s input range (260V to 305V).
- Double-check all connections to ensure they are secure and correctly aligned.
Step 5: Power On and Test
- Turn on the APW12 PSU and monitor the Antminer S19Pro for signs of power.
- Check the miner’s interface to confirm it is receiving power and functioning correctly.
Step 6: Monitor and Optimize
Once operational, regularly monitor the APW12 and Antminer S19Pro for performance and temperature. Use monitoring software to track power usage and efficiency, making adjustments as needed to optimize mining output.
Real-World Applications and Operational Insights
The APW12 8000W PSU is not just a theoretical upgrade—it delivers tangible benefits in real-world mining scenarios. For example, in a large-scale mining farm, the PSU’s ability to handle high loads and operate in diverse conditions translates to reduced downtime and lower maintenance costs. Similarly, for immersion-cooled setups, the APW12’s advanced cooling compatibility ensures stable performance even during extended mining sessions.
In one case study, a mining operator reported a 15% increase in efficiency after switching to the APW12 for their overclocked Antminer S19Pro rigs. The PSU’s consistent power delivery and robust protection mechanisms allowed them to push their hardware to its limits without risking damage.
Conclusion
The APW12 8000W PSU is a game-changing power supply solution for cryptocurrency mining operations, particularly those using the Bitmain Antminer S19Pro. Its advanced cooling capabilities, industrial-grade performance, and comprehensive protection features make it an indispensable tool for maximizing mining efficiency and profitability.
By following this installation guide and leveraging the APW12’s unique advantages, you can ensure a smooth and successful setup for your mining rig. Whether you’re running a small operation or a large-scale mining farm, the APW12 8000W PSU is a reliable and powerful choice that delivers real-world results.
Invest in the APW12 today and take your cryptocurrency mining operations to the next level!
