Designing an Efficient and Scalable Immersion Cooling Setup for Crypto Mining

Introduction

As cryptocurrency mining continues to evolve, thermal management remains one of the most critical challenges for mining operators. High-performance ASIC miners generate significant heat, and traditional air cooling solutions often struggle to maintain optimal operating temperatures—especially in large-scale operations. Immersion cooling has emerged as a superior alternative, offering enhanced efficiency, lower energy consumption, and extended hardware lifespan.

The Immersion Cooling Suite represents a breakthrough in crypto mining thermal management, providing an integrated, high-performance solution that simplifies deployment while maximizing cooling efficiency. Unlike traditional air-cooled setups, immersion cooling submerges mining hardware in a thermally conductive dielectric fluid, drastically improving heat dissipation. This article explores how to design an efficient and scalable immersion cooling setup using the Immersion Cooling Suite, highlighting its advantages and practical applications in modern mining operations.

The Need for Advanced Cooling in Crypto Mining

Cryptocurrency mining hardware operates at high power densities, with modern ASICs like the Antminer S19 or Whatsminer M50 series consuming upwards of 3,000W per unit. Traditional air cooling methods rely on fans to dissipate heat, but they face several limitations:

High energy consumption – Cooling fans can consume 10-20% of a miner’s total power draw.
Noise pollution – Large mining farms generate significant acoustic disturbances.
Dust accumulation – Airborne particles clog heatsinks, reducing cooling efficiency over time.
Thermal throttling – Inadequate cooling leads to performance degradation and hardware failures.

Immersion cooling addresses these challenges by directly transferring heat from mining hardware to a dielectric fluid, which is then circulated through a heat exchanger. This method offers:

Higher thermal efficiency – Liquids conduct heat far better than air.
Reduced power consumption – Eliminating fans cuts auxiliary power needs.
Silent operation – No noisy fans mean quieter mining farms.
Longer hardware lifespan – Stable temperatures prevent thermal stress on components.

The Immersion Cooling Suite takes these benefits further with an optimized single-loop design, eliminating secondary heat exchange systems for greater reliability and efficiency.

Key Components of an Efficient Immersion Cooling Setup

1. Immersion Tank & Coolant Circulation

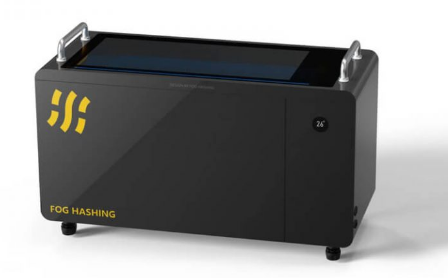

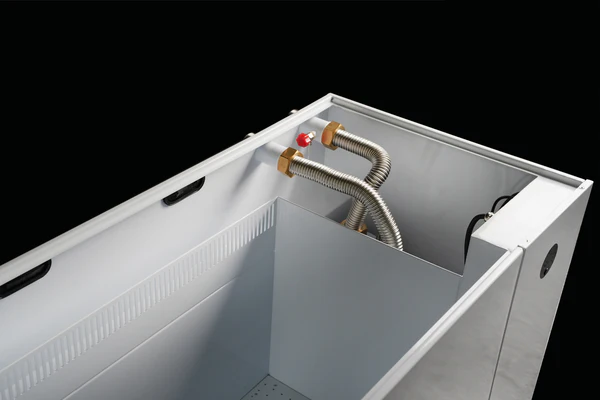

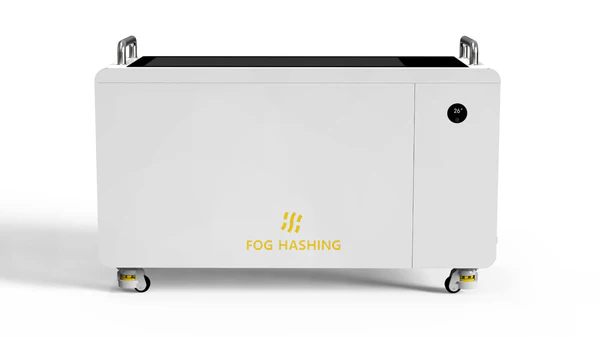

The heart of the system is the immersion tank, where mining rigs are submerged in a dielectric coolant. The Immersion Cooling Suite features a 200L capacity tank, designed to accommodate 6 Antminer S19/S21 units or 8 Whatsminer M50/M60 units in a single loop.

Single-loop oil circulation – Unlike traditional two-phase systems that require separate coolant and water loops, this design simplifies maintenance and reduces failure points.
90L/min flow rate – Ensures rapid heat transfer from miners to the cooling system.
Dielectric fluid compatibility – Works with industry-standard coolants like engineered oils or synthetic fluids.

2. Dry Cooler & Heat Dissipation

Instead of relying on energy-intensive chillers, the system uses a dry cooler for passive heat exchange. Key features include:

28kW cooling capacity at 33°C ambient – Maintains optimal miner temperatures even in warm climates.
Gradual performance scaling – Delivers 24kW at 35°C and 21kW at 38°C, ensuring stable operation.
Water mist support for extreme heat – Extends functionality up to 42°C, making it viable for hot environments.

3. Smart Energy Optimization

The system includes an EC motor with dynamic fan control, automatically adjusting speeds based on ambient temperature. This ensures:

Low power consumption (850W at 220V/50Hz) – Far more efficient than traditional cooling solutions.
Noise levels as low as 45dB(A) at 10 meters – Ideal for urban or noise-sensitive deployments.

Advantages of the Immersion Cooling Suite

1. Simplified Installation & Scalability

Unlike complex two-phase immersion systems, the single-loop design reduces setup complexity. Operators only need to:

Submerge miners in the tank.

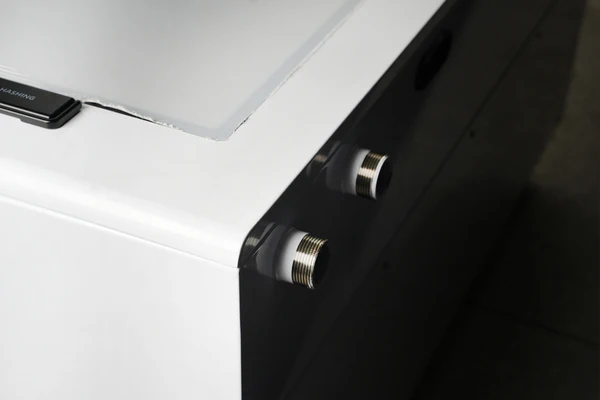

Connect the tubing to the dry cooler.
Power the circulation pump and cooling fans.

This plug-and-play approach allows for quick deployment and easy expansion by adding additional tanks and coolers as mining operations grow.

2. Enhanced Hardware Longevity

By maintaining stable temperatures, immersion cooling reduces thermal cycling—one of the leading causes of ASIC failures. Key benefits include:

No dust or moisture exposure – Protects PCB components from corrosion.
Consistent thermal performance – Prevents overheating-related throttling.
Potential for overclocking – Cooler operation allows for higher hash rates without risking damage.

3. Lower Operational Costs

Reduced electricity consumption – Eliminating fans cuts power usage by up to 20%.
Minimal maintenance – No air filters to clean or fan bearings to replace.
Space efficiency – Higher density per rack compared to air-cooled setups.

4. Future-Proofing Mining Operations

As mining difficulty increases and newer, hotter-running ASICs enter the market, traditional cooling methods may become unsustainable. The Immersion Cooling Suite’s scalable architecture ensures compatibility with next-generation miners, protecting infrastructure investments.

Practical Deployment Considerations

1. Site Preparation

Ventilation – While the system is self-contained, adequate airflow around the dry cooler improves efficiency.
Floor load capacity – A fully loaded tank with miners and coolant can weigh over 500kg.
Power supply – Ensure stable 200-240V single-phase power with sufficient amperage.

2. Maintenance Best Practices

Coolant quality checks – Monitor for degradation or contamination annually.
Pump inspections – Verify consistent flow rates to prevent overheating.
Dry cooler cleaning – Remove dust/debris from fins periodically.

3. ROI & Cost Analysis

While immersion cooling requires a higher upfront investment than air cooling, the long-term savings justify the cost:

For large-scale farms, the reduced electricity and hardware replacement costs can lead to a payback period of 12-18 months.

Conclusion

The Immersion Cooling Suite offers a highly efficient, scalable, and cost-effective solution for modern cryptocurrency mining operations. By eliminating the inefficiencies of air cooling, it delivers superior thermal performance, lower energy consumption, and extended hardware durability—all while simplifying installation and maintenance.

For mining operators looking to future-proof their infrastructure, reduce operational costs, and maximize uptime, transitioning to immersion cooling is no longer a luxury but a necessity. With its 28kW cooling capacity, intelligent energy optimization, and plug-and-play design, the Immersion Cooling Suite stands out as a premier choice for both small-scale and industrial mining setups.

As the industry moves toward more energy-efficient practices, adopting advanced cooling technologies will be key to maintaining profitability in an increasingly competitive landscape. Whether you’re upgrading an existing farm or designing a new facility, integrating immersion cooling ensures optimal performance, sustainability, and long-term ROI.
