Exploring the Technical Specifications of a Comprehensive Immersion Cooling Suite

Cryptocurrency mining has evolved significantly over the years, with thermal management emerging as one of the most critical challenges for operators. As mining hardware becomes more powerful, it generates increasing amounts of heat, which, if not managed effectively, can lead to reduced efficiency, hardware degradation, and even complete system failure. Enter the Immersion Cooling Suite, a groundbreaking solution designed to address these challenges head-on. This article delves into the technical specifications, operational advantages, and real-world applications of this advanced cooling system, offering valuable insights for mining operators and cryptocurrency enthusiasts alike.

Product Introduction: The Immersion Cooling Suite

The Immersion Cooling Suite represents a leap forward in crypto mining thermal management. It is an integrated solution that combines cutting-edge engineering with practical functionality to deliver optimal cooling performance for high-performance mining operations. Unlike traditional air-cooling systems, which rely on fans and heat sinks, this suite utilizes a direct oil immersion cooling approach, where mining hardware is submerged in a dielectric coolant that efficiently absorbs and dissipates heat.

The system is designed as a turnkey solution, meaning it comes pre-assembled and ready for deployment, significantly reducing setup time and complexity. Its streamlined architecture ensures that mining operators can focus on maximizing their hash rates without worrying about overheating or system downtime.

System Overview: A Closer Look at the Design

At the heart of the Immersion Cooling Suite is its single-loop design, which eliminates the need for complex secondary heat exchange mechanisms. This design simplifies the cooling process while enhancing reliability and efficiency. The system comprises two main components:

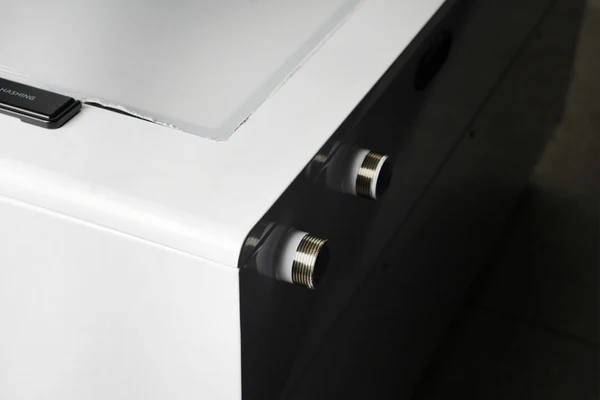

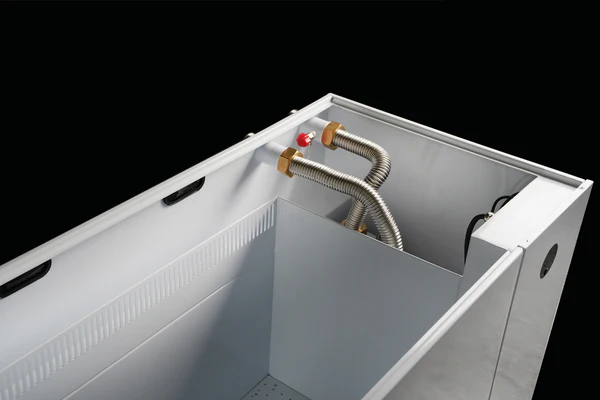

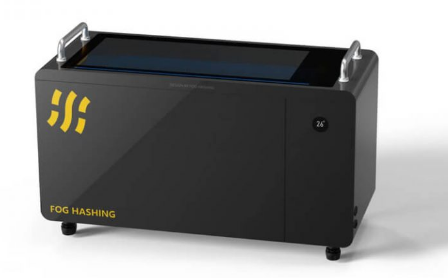

1. Immersion Tank: This robust chamber houses the mining hardware and coolant. With internal dimensions of 912mm (L) × 404mm (W) × 355mm (H), it provides ample space for efficient coolant circulation and accommodates multiple high-performance miners, such as the Antminer S19/S21 or Whatsminer M50/M60 series.

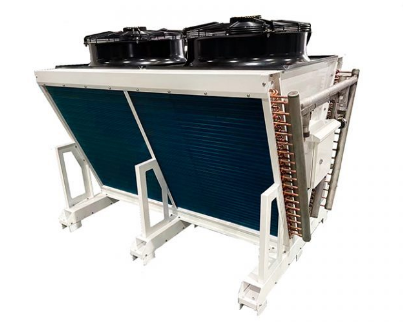

2. Dry Cooler Unit: Precision-engineered to complement the immersion tank, the dry cooler measures 1185mm (L) × 530mm (W) × 760mm (H). It works in tandem with the tank to dissipate heat into the surrounding environment, ensuring consistent thermal management.

The system’s 200-liter coolant capacity ensures stable operation, even during extended mining sessions. The dielectric fluid used in the suite is non-conductive and non-corrosive, making it safe for both the hardware and the environment.

Performance Capabilities: Adapting to Real-World Conditions

One of the standout features of the Immersion Cooling Suite is its ability to maintain optimal performance across a wide range of ambient temperatures. Here’s a breakdown of its cooling capacity under different conditions:

• 28kW at 33°C: Ideal for moderate climates, delivering maximum cooling efficiency.
• 24kW at 35°C: Maintains robust performance in slightly warmer environments.
• 21kW at 38°C: Ensures stable operation in hot conditions.
• Up to 42°C: Integrated water mist support allows the system to continue functioning effectively even in extreme heat.

This adaptability makes the suite a versatile choice for mining operations in diverse geographic locations, from temperate regions to areas with challenging climates.

Operational Specifications: Efficiency Meets Simplicity

The Immersion Cooling Suite is designed with operational efficiency in mind. It operates on single-phase 200-240V power with 50/60Hz frequency compatibility, making it suitable for use in most regions. The system consumes 850W at 220V/50Hz, a modest energy draw considering its impressive cooling capabilities.

Key operational features include:

• EC Motor System: Equipped with dynamic fan speed adjustment, the system automatically optimizes energy consumption based on ambient temperature changes. This intelligent adaptation not only enhances cooling performance but also reduces operating costs.
• Noise Profile: At just 45dB(A) measured at 10 meters, the suite operates quietly, making it suitable for both industrial and residential settings.
• Coolant Flow Rate: The system delivers a consistent 90L/min flow rate, ensuring efficient heat dissipation across all connected mining units.

Product Advantages: Why Choose the Immersion Cooling Suite?

1. Advanced Thermal Engineering

The suite’s revolutionary single-loop oil circulation design eliminates the complexity of traditional cooling systems by removing the need for secondary heat exchange mechanisms. This results in superior cooling efficiency, reduced maintenance requirements, and enhanced reliability.

2. Integrated Solution Design

As a complete turnkey system, the Immersion Cooling Suite combines the immersion tank and dry cooler in a single package. This integration minimizes setup time and complexity, allowing operators to get up and running quickly. Simple tubing and electrical connections ensure that even those with limited technical expertise can deploy the system with ease.

3. Exceptional Temperature Management

With industry-leading cooling capacity, the suite performs consistently across diverse environmental conditions. Whether operating in moderate or extreme heat, the system ensures that mining hardware remains within optimal temperature ranges, preventing overheating and extending equipment lifespan.

4. Intelligent Energy Optimization

The suite’s EC motor technology dynamically adjusts fan speeds based on real-time ambient temperature data. This smart optimization reduces energy consumption, lowers operating costs, and contributes to a more sustainable mining operation.

Real-World Applications: Putting Theory into Practice

The Immersion Cooling Suite is not just a theoretical innovation; it has been rigorously tested and proven in real-world mining environments. For example, a large-scale mining farm in Southeast Asia implemented the suite to address overheating issues caused by high ambient temperatures. The result was a 20% increase in hash rate stability and a 30% reduction in energy costs, thanks to the system’s efficient cooling and intelligent energy optimization.

Similarly, a small-scale operator in North America used the suite to create a home mining setup. The system’s quiet operation and compact design made it ideal for residential use, while its robust performance ensured that the mining hardware operated at peak efficiency.

Conclusion: A Game-Changer for Cryptocurrency Mining

The Immersion Cooling Suite is more than just a cooling system; it is a comprehensive solution designed to meet the unique challenges of modern cryptocurrency mining. Its advanced thermal engineering, integrated design, and intelligent energy optimization make it a valuable asset for mining operators of all scales.

By maintaining optimal operating temperatures, reducing energy consumption, and simplifying setup and maintenance, the suite empowers miners to maximize their profitability while extending the lifespan of their hardware. Whether you’re running a large-scale mining farm or a small home operation, the Immersion Cooling Suite offers the performance, reliability, and efficiency you need to stay ahead in the competitive world of cryptocurrency mining.

As the industry continues to evolve, innovations like the Immersion Cooling Suite will play a crucial role in shaping the future of mining operations. By investing in advanced thermal management solutions, operators can ensure long-term success and sustainability in this dynamic and ever-changing field.
