How Does Antminer T21 PDU125-12AC1 Ensure Protection Against Short Circuits?
In the fast-paced world of cryptocurrency mining, ensuring the reliability and safety of your mining operations is paramount. Power distribution units (PDUs) play a critical role in managing the flow of electricity to mining rigs, and any failure in this system can lead to costly downtime or even catastrophic damage. Among the leading solutions in this space is the Antminer T21 PDU125-12AC1, a high-performance power distribution unit engineered specifically for industrial-scale mining operations. One of its standout features is its robust protection against short circuits—a safeguard that every mining operator should prioritize. In this article, we’ll explore how the Antminer T21 PDU125-12AC1 achieves this, along with its other advantages that make it a top choice for mining professionals.
Introducing the Antminer T21 PDU125-12AC1

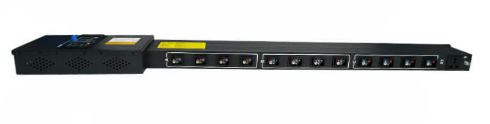

The Antminer T21 PDU125-12AC1 is a purpose-built power distribution unit designed to meet the rigorous demands of cryptocurrency mining. With an impressive output capacity of 85KW, this PDU is ideal for large-scale mining farms where consistent and reliable power delivery is essential. Its industrial-grade construction ensures durability and stability, even in the harshest environments.
Key specifications include:
- Input Voltage Range: 346-480V AC (three-phase + neutral + protective earth)
- Output Ports: 12 ports with 6-pin connectors + 1 AC30 3-in-1 multifunctional port
- Input Current: 125A/4P
- Operating Temperature: -20°C to 40°C
- Dimensions: 1100mm × 125mm × 70mm
- Weight: 5.6KG
This PDU is engineered for flexibility, offering dual-voltage output capabilities (346-480V and 200-227VAC single phase) and compatibility with both 50Hz and 60Hz frequencies. These features make it adaptable to various mining setups and suitable for global deployment.
The Importance of Short Circuit Protection in Mining Operations
Short circuits are one of the most common and dangerous electrical faults in mining operations. They occur when an unintended connection is made between two points in an electrical circuit, causing a sudden surge of current. This can result in overheating, equipment damage, fires, and even explosions. For mining operators, short circuits not only pose a safety risk but also lead to costly downtime and potential loss of revenue.
Given the high power requirements of modern mining rigs, PDUs must be equipped with advanced safety mechanisms to prevent such incidents. This is where the Antminer T21 PDU125-12AC1 shines.
How the Antminer T21 PDU125-12AC1 Protects Against Short Circuits
1. Robust Circuit Breaker System

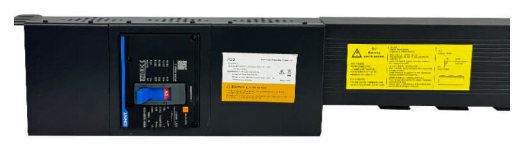

The Antminer T21 PDU125-12AC1 is equipped with a 125A circuit breaker, a critical component in its short circuit protection mechanism. This breaker is designed to detect any abnormal current flow and instantly disconnect the circuit, preventing excessive current from reaching connected mining devices.
Here’s how it works:
- When a short circuit occurs, the current in the circuit spikes dramatically.
- The circuit breaker senses this surge and trips within milliseconds.
- The power supply to the affected circuit is cut off, safeguarding both the PDU and connected equipment.
This rapid response minimizes the risk of damage and ensures that the rest of the mining operation continues uninterrupted.
2. High Voltage Withstand Capacity
With a 500V voltage withstand capacity, the Antminer T21 PDU125-12AC1 is built to handle significant electrical stress without compromising safety. This feature ensures that the PDU remains operational even under extreme conditions, reducing the likelihood of short circuits caused by voltage fluctuations or surges.
3. IP20 Protection Rating
The PDU’s IP20 protection rating adds an extra layer of safety by shielding its internal components from foreign objects and accidental contact. While this rating does not protect against liquids, it significantly reduces the risk of short circuits caused by debris or human interference.
4. Industrial-Grade Materials
The use of premium materials, including 252g of copper and 502g of aluminum components, enhances the PDU’s durability and thermal management. These materials ensure that the unit can handle high currents without overheating, a common precursor to short circuits.
5. Comprehensive Safety Features
Beyond short circuit protection, the Antminer T21 PDU125-12AC1 includes other safety mechanisms such as overload protection and grounding. These features work in tandem to create a secure environment for mining equipment, further mitigating the risk of electrical faults.
Additional Advantages of the Antminer T21 PDU125-12AC1
While short circuit protection is a standout feature, the Antminer T21 PDU125-12AC1 offers several other benefits that make it a top choice for mining operators:
Flexible Configuration Options
With 12 output ports and support for both three-phase and single-phase configurations, this PDU provides unmatched versatility. Whether you’re running a large-scale mining farm or a smaller setup, the Antminer T21 PDU125-12AC1 can adapt to your needs.
Space-Efficient Design
Despite its high power output, the PDU boasts a compact form factor and lightweight design. This makes it easy to install and maintain, even in space-constrained mining facilities.
Global Deployment Capability
The PDU’s compatibility with different voltage standards and frequencies ensures that it can be used in mining operations worldwide. This flexibility is particularly valuable for operators with facilities in multiple countries.
Reliability in Challenging Environments
Designed for continuous operation in demanding conditions, the Antminer T21 PDU125-12AC1 performs reliably across a wide temperature range (-20°C to 40°C) and high humidity levels (up to 90% without condensation). This reliability translates to reduced downtime and higher productivity for mining operators.
Real-World Applications and Operational Insights
In practical terms, the Antminer T21 PDU125-12AC1 is an invaluable asset for mining operations of all sizes. For example:
- Large Mining Farms: The PDU’s 85KW output capacity and 12 output ports make it ideal for powering multiple high-performance mining rigs simultaneously.
- Smaller Setups: Its dual-voltage output capability allows smaller operations to scale up without needing to invest in additional PDUs.
- Remote Locations: The PDU’s ability to operate at elevations up to 2000 meters and in extreme temperatures makes it suitable for mining facilities in remote or harsh environments.
Mining operators who have adopted the Antminer T21 PDU125-12AC1 report significant improvements in power management efficiency and reduced incidence of electrical faults. Its combination of safety, flexibility, and reliability ensures that mining operations can run smoothly and profitably.
Conclusion
The Antminer T21 PDU125-12AC1 is more than just a power distribution unit—it’s a comprehensive solution for ensuring the safety and efficiency of cryptocurrency mining operations. Its advanced short circuit protection mechanisms, coupled with flexible configuration options and industrial-grade reliability, make it an essential tool for mining professionals. By investing in this PDU, operators can safeguard their equipment, minimize downtime, and focus on maximizing their mining output.
Whether you’re managing a large-scale mining farm or a smaller setup, the Antminer T21 PDU125-12AC1 delivers the performance and protection you need to stay ahead in the competitive world of cryptocurrency mining.
