How to Connect Antminer T21 PDU125-12AC1 to Goldshell and Bitmain Mining Equipment?
Cryptocurrency mining operations demand reliable, efficient, and scalable power distribution solutions to ensure optimal performance and uptime. The Antminer T21 PDU125-12AC1 is a high-performance power distribution unit (PDU) specifically engineered to meet the rigorous demands of large-scale mining setups. In this article, we’ll explore how to connect the Antminer T21 PDU125-12AC1 to popular mining equipment like Goldshell and Bitmain devices, while highlighting its key features and advantages for mining operators.
Product Introduction: Antminer T21 PDU125-12AC1

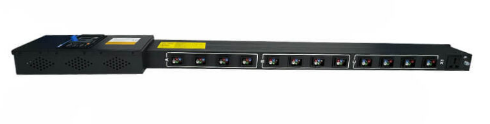

The Antminer T21 PDU125-12AC1 is an industrial-grade power distribution unit designed to deliver robust and reliable power management for cryptocurrency mining operations. With an impressive output capacity of 85KW, this PDU is ideal for powering multiple mining devices simultaneously, making it a cornerstone of large-scale mining farms.
Key Specifications:
- Input Voltage Range: 346-480V AC (three-phase + neutral + protective earth)
- Output Ports: 12 ports with 6-pin connectors + 1 AC30 3-in-1 multifunctional port
- Input Current: 125A/4P
- Power Capacity: 85KW
- Operating Temperature: -20°C to 40°C
- Protection Rating: IP20
- Dimensions: 1100mm × 125mm × 70mm
- Weight: 5.6KG
The PDU’s dual-voltage output capability (346-480V three-phase and 200-227V single-phase) ensures compatibility with a wide range of mining equipment, including Goldshell and Bitmain devices. Its compact design and lightweight construction make it easy to install and maintain, even in space-constrained environments.
Why Choose the Antminer T21 PDU125-12AC1?
Before diving into the connection process, let’s explore the product advantages that make the Antminer T21 PDU125-12AC1 a standout choice for mining operators:
1. Flexible Configuration Options
The PDU’s 12 output ports and dual-voltage capability allow for versatile configurations, accommodating both three-phase and single-phase setups. This flexibility ensures compatibility with various mining devices and simplifies future expansions.
2. Professional-Grade Protection

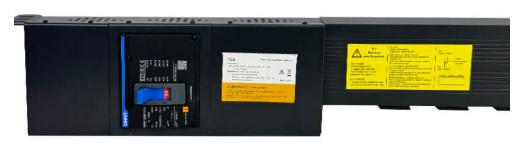

Equipped with a 125A circuit breaker and 500V voltage withstand capacity, the PDU provides robust protection against overloads, short circuits, and other electrical hazards. This safeguards your valuable mining equipment and facility infrastructure.
3. Industrial Reliability
Built with premium materials, including 252g of copper and 502g of aluminum components, the PDU is designed for continuous operation in demanding environments. Its wide operating temperature range (-20°C to 40°C) and humidity tolerance (5%-90% without condensation) ensure stable performance in challenging conditions.
4. Space-Efficient Design
Despite its high power output, the PDU’s compact form factor optimizes rack space utilization, making it suitable for both large mining farms and smaller installations.
Connecting the Antminer T21 PDU125-12AC1 to Goldshell and Bitmain Mining Equipment
Now that we’ve covered the basics, let’s walk through the steps to connect the Antminer T21 PDU125-12AC1 to Goldshell and Bitmain mining devices.
Step 1: Prepare Your Setup
Before connecting the PDU, ensure that your mining facility’s electrical infrastructure can support the PDU’s input requirements. Verify the following:
- The power supply matches the PDU’s input voltage range (346-480V AC).
- The circuit breaker capacity is sufficient for the PDU’s 125A input current.
- Proper grounding is in place to ensure safety.
Step 2: Install the PDU
Mount the PDU in a secure location within your mining rack or facility. Ensure adequate ventilation to prevent overheating, as mining environments can generate significant heat.
Step 3: Connect the Power Input
Using appropriate cables, connect the PDU to your facility’s power source. Ensure the connections are secure and comply with local electrical codes. The PDU’s three-phase + neutral + protective earth configuration provides a stable and safe power supply.
Step 4: Connect Goldshell Mining Devices
Goldshell miners typically operate on single-phase power. To connect them to the PDU:
- Use the PDU’s single-phase output ports (200-227V).
- Plug the Goldshell miner’s power cable into the PDU’s 6-pin connector.
- Ensure the miner’s power requirements match the PDU’s output specifications.
Step 5: Connect Bitmain Mining Devices
Bitmain miners, such as the Antminer series, often require three-phase power. To connect them:
- Use the PDU’s three-phase output ports (346-480V).
- Plug the Bitmain miner’s power cable into the PDU’s 6-pin connector.
- Verify that the miner’s power consumption aligns with the PDU’s capacity.
Step 6: Test and Monitor
Once all connections are made, power on the PDU and your mining devices. Monitor the system for any irregularities, such as overheating or voltage fluctuations. The PDU’s built-in protection features will help mitigate potential issues.
Practical Applications and Benefits
The Antminer T21 PDU125-12AC1 is particularly well-suited for the following scenarios:
1. Large-Scale Mining Farms
With its 85KW power capacity and 12 output ports, the PDU can efficiently power multiple high-performance miners, reducing the need for additional PDUs and simplifying power management.
2. Mixed Mining Setups
The PDU’s dual-voltage capability allows it to support both Goldshell (single-phase) and Bitmain (three-phase) devices in the same setup, providing unmatched flexibility.
3. Challenging Environments
The PDU’s industrial-grade construction and wide operating temperature range make it ideal for mining facilities in harsh climates or remote locations.
Conclusion
The Antminer T21 PDU125-12AC1 is a powerful and versatile power distribution unit that addresses the unique needs of cryptocurrency mining operations. Its flexible configuration options, professional-grade protection, and industrial reliability make it an essential component for both large-scale mining farms and smaller setups. By following the steps outlined in this article, you can seamlessly connect the PDU to Goldshell and Bitmain mining equipment, ensuring efficient and reliable power delivery for your mining operations.
Whether you’re expanding your mining farm or optimizing your existing setup, the Antminer T21 PDU125-12AC1 offers the performance and durability needed to maximize your mining efficiency and profitability.
