How to Connect Antminer T21 PDU125-12AC1 to Goldshell and Bitmain Mining Equipment?

Cryptocurrency mining operations require robust, reliable, and efficient power distribution systems to ensure maximum uptime and profitability. The Antminer T21 PDU125-12AC1 is a high-performance power distribution unit (PDU) specifically engineered to meet the demands of large-scale mining operations. Whether you’re using Goldshell or Bitmain mining equipment, this PDU provides the flexibility, safety, and industrial-grade reliability needed to optimize your setup. In this article, we’ll walk you through how to connect the Antminer T21 PDU125-12AC1 to your mining hardware, highlighting its key features and operational benefits along the way.

---

Product Introduction: Antminer T21 PDU125-12AC1

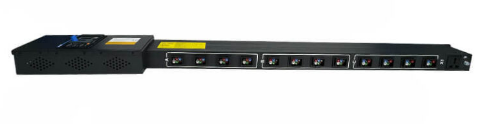

The Antminer T21 PDU125-12AC1 is a professional-grade PDU designed for cryptocurrency mining environments. With an impressive output capacity of 85KW, it’s capable of powering multiple high-performance mining rigs simultaneously. Its versatility stems from its 12 output ports with 6-pin connectors and an additional AC30 3-in-1 multifunctional port, allowing for flexible configurations across various mining devices.

Key specifications include:

• Input Voltage Range: 346-480V AC (three-phase + neutral + protective earth)
• Output Options: Dual-voltage capability (346-480V, 4P and 200-227VAC single phase)
• Operating Conditions: -20°C to 40°C, 5%-90% relative humidity, up to 2000 meters elevation
• Safety Features: IP20 protection rating, 125A/4P input current, 500V voltage withstand capacity

Built with industrial-grade materials—including 252g of copper and 502g of aluminum components—this PDU ensures exceptional durability and thermal management. Its compact dimensions (1100mm × 125mm × 70mm) and lightweight design (5.6KG) make it easy to install and maintain in mining facilities of all sizes.

---

Why Choose the Antminer T21 PDU125-12AC1?

Before diving into the connection process, it’s important to understand why this PDU stands out in the competitive mining equipment market. Here are its key advantages:

1. Flexible Configuration Options

The PDU’s 12 output ports and dual-voltage capability allow you to power a variety of mining devices, including Goldshell and Bitmain rigs. Whether you’re running a small-scale operation or a large mining farm, this versatility ensures seamless integration.

1. Professional-Grade Protection

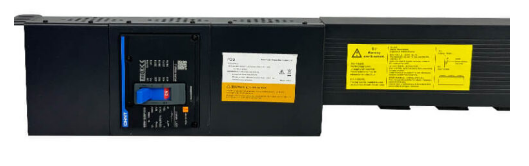

Equipped with a 125A circuit breaker and 500V voltage withstand capacity, the PDU safeguards your mining equipment against overloads, short circuits, and other electrical hazards. This level of protection minimizes downtime and protects your investment.

1. Industrial Reliability

Designed for continuous operation in demanding environments, the Antminer T21 PDU125-12AC1 maintains stable performance across a wide temperature range and challenging conditions. This reliability is critical for maximizing mining operation uptime.

1. Space-Efficient Design

Despite its powerful output capacity, the PDU’s compact design optimizes rack space utilization. This makes it an ideal choice for both large mining farms and space-constrained installations.

---

Connecting the Antminer T21 PDU125-12AC1 to Goldshell and Bitmain Mining Equipment

Now that we’ve covered the PDU’s features and advantages, let’s walk through the step-by-step process of connecting it to your mining hardware. Whether you’re using Goldshell miners like the Goldshell HS6 or Bitmain models like the Antminer S19 XP, the process is straightforward and efficient.

Step 1: Verify Compatibility and Power Requirements

Before connecting the PDU to your mining equipment, ensure that your devices are compatible with the PDU’s voltage and current specifications. Most Goldshell and Bitmain miners operate within the PDU’s supported range, but it’s always a good idea to double-check the manufacturer’s guidelines.

Step 2: Prepare the Installation Site

Choose a well-ventilated, dry location for the PDU. Ensure that the area is free from dust and moisture to prevent damage to the unit and connected devices. Mount the PDU securely using the provided brackets or mounting hardware, ensuring it’s easily accessible for maintenance.

Step 3: Connect the Input Power Source

Using appropriate cables, connect the PDU’s input terminals to your three-phase power source. Ensure that the input voltage falls within the specified range (346-480V AC). Tighten all connections securely to prevent loose contacts, which can lead to overheating or electrical failures.

Step 4: Connect Your Mining Equipment

For Goldshell or Bitmain miners, use the 6-pin connectors or the AC30 3-in-1 multifunctional port to connect the devices to the PDU. Here’s how:

1. Identify the power input ports on your mining devices.
2. Use the appropriate cables to connect each device to the PDU’s output ports.
3. Ensure that the connections are secure and that there’s no strain on the cables.

Step 5: Test the Setup

Once all connections are in place, power on the PDU and your mining equipment. Monitor the system for any irregularities, such as flickering lights or unusual noises. If everything operates smoothly, your setup is ready for mining.

---

Real-World Applications and Benefits

The Antminer T21 PDU125-12AC1 is particularly well-suited for large-scale mining operations where consistent power delivery and equipment protection are critical. Here are a few examples of how this PDU can enhance your mining setup:

1. Scalability for Growing Operations

With 12 output ports and dual-voltage capability, the PDU can accommodate new mining devices as your operation expands. This scalability ensures that you won’t need to invest in additional PDUs prematurely.

1. Enhanced Safety for High-Value Equipment

Mining rigs like the Bitmain Antminer S19 XP and Goldshell HS6 represent significant investments. The PDU’s robust safety features protect these devices from electrical hazards, reducing the risk of costly repairs or replacements.

1. Optimized Space Utilization

In densely packed mining facilities, space is at a premium. The PDU’s compact design allows you to maximize rack space while delivering substantial power output, making it an ideal choice for both large and small operations.

---

Conclusion

The Antminer T21 PDU125-12AC1 is a game-changing solution for cryptocurrency mining operators seeking reliable, versatile, and efficient power distribution. Its robust design, flexible configuration options, and professional-grade protection make it an indispensable component of any mining setup, whether you’re using Goldshell or Bitmain equipment.

By following the steps outlined in this article, you can seamlessly integrate the PDU into your operation, ensuring optimal performance and peace of mind. As the cryptocurrency mining industry continues to evolve, investing in high-quality infrastructure like the Antminer T21 PDU125-12AC1 will position you for long-term success.
