How to Connect Whatsminer P221C PSU to a Whatsminer M50S Mining Rig?
Cryptocurrency mining operations demand reliable, high-performance hardware to maximize profitability and minimize downtime. Among the critical components of any mining setup is the power supply unit (PSU), which ensures stable and efficient power delivery to your mining rig. The Whatsminer P221C PSU is a top-tier industrial-grade power supply specifically designed for professional mining operations, particularly those utilizing Whatsminer’s M50 series, including the Whatsminer M50S.
In this guide, we’ll walk you through the process of connecting the Whatsminer P221C PSU to an M50S mining rig, while highlighting the product’s advantages and practical applications in real-world mining setups.
Introducing the Whatsminer P221C PSU

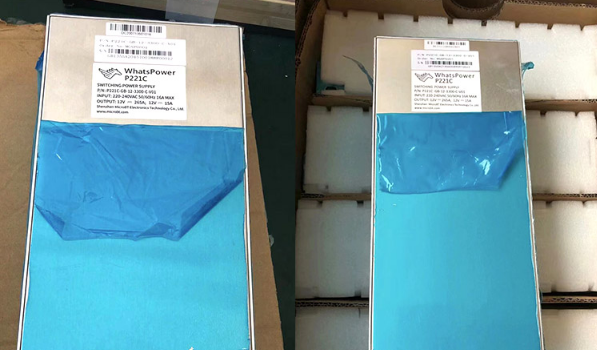

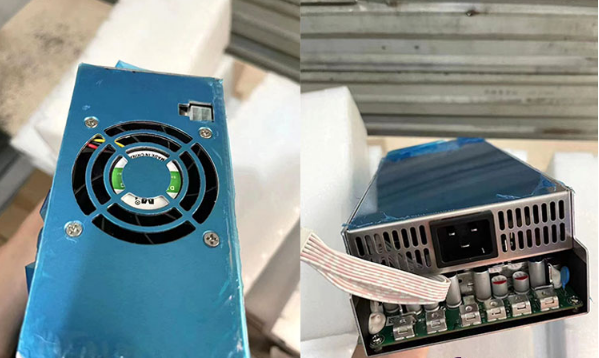

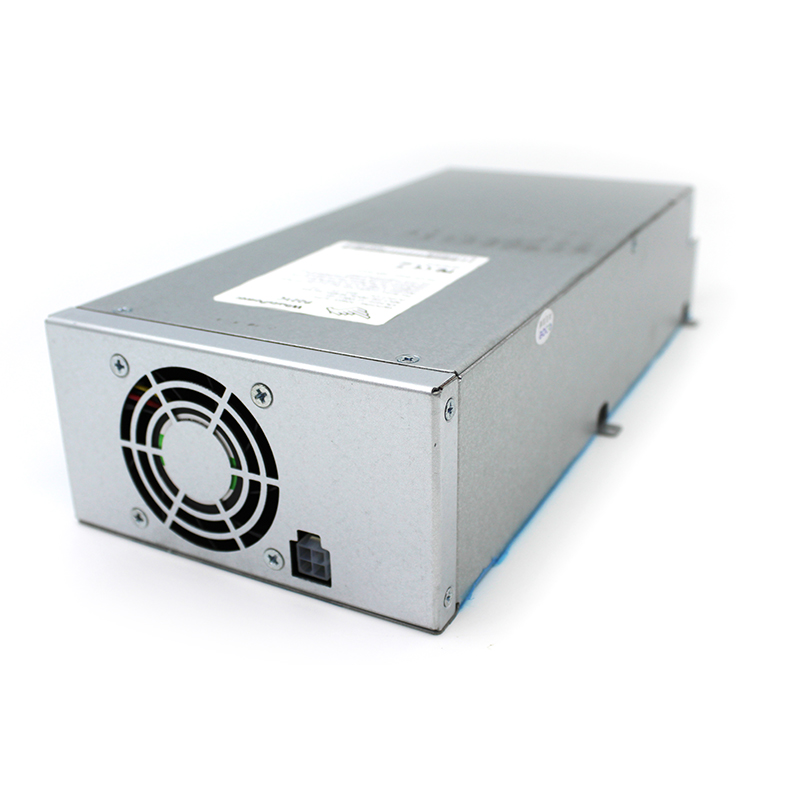

The Whatsminer P221C PSU is a high-efficiency power supply unit engineered to meet the rigorous demands of cryptocurrency mining. Built with industrial-grade components, this PSU delivers a stable 12V DC output at a whopping 265 amperes, ensuring your mining hardware operates at peak performance. With a remarkable 95% power efficiency rating, the P221C minimizes energy waste and reduces operational costs, making it a cost-effective solution for large-scale mining operations.
Key specifications of the P221C include:
- Input Voltage: 220-240V AC at 50/60Hz
- Maximum Current Draw: 16 amperes
- Output: 12V DC at 265A
- Efficiency: 95%
- Weight: 4kg
Designed for global deployment, the P221C is compatible with standard industrial power infrastructure, making it a versatile choice for mining operators worldwide. Its compact form factor and lightweight design allow for flexible installation in various mining environments, from small-scale setups to large mining farms.
Advantages of the Whatsminer P221C PSU
Before diving into the connection process, it’s worth understanding why the P221C stands out as a preferred choice for mining operators:
- Universal Compatibility
The P221C is engineered to seamlessly integrate with a wide range of Whatsminer devices, including the M20, M30, M31, M32, and advanced M50 series miners like the M50S. This compatibility ensures maximum deployment flexibility and simplifies hardware upgrades.
- Industrial-Grade Performance
With a 95% power efficiency rating, the P221C significantly reduces energy consumption and heat generation, lowering operational costs and extending the lifespan of your mining hardware.
- Robust Engineering
Built to withstand the demands of continuous 24/7 operation, the P221C incorporates comprehensive protection mechanisms, including over-voltage, over-current, and short-circuit protection.
- Professional Support
Backed by a 160-day manufacturer warranty and dedicated after-sales service, the P221C ensures minimal downtime and reliable performance in professional mining environments.
Connecting the Whatsminer P221C PSU to an M50S Mining Rig
Now that we’ve covered the basics, let’s get into the step-by-step process of connecting the P221C PSU to your Whatsminer M50S mining rig.
Step 1: Gather the Necessary Tools and Equipment
Before starting, ensure you have the following:
- Whatsminer P221C PSU
- Whatsminer M50S mining rig
- Power cables (included with the PSU)
- Grounding cable (for safety)
- Screwdriver (if mounting the PSU)
Step 2: Power Down and Unplug All Devices
Safety is paramount when working with electrical equipment. Ensure both the PSU and mining rig are powered down and unplugged from any power source before proceeding.
Step 3: Mount the P221C PSU (Optional)
If you’re installing the PSU in a rack or enclosure, use a screwdriver to securely mount the unit. The P221C’s compact design and lightweight construction make it easy to position in tight spaces.
Step 4: Connect the Power Cables
Locate the power input terminals on the Whatsminer M50S. These are typically labeled as “12V IN” or “DC IN.” Take the provided power cables and connect them from the P221C’s output terminals to the M50S’s input terminals. Ensure the connections are secure to prevent any power interruptions.
Step 5: Ground the PSU
To ensure safe operation, connect the grounding cable from the P221C’s grounding terminal to a proper grounding point. This step is crucial for preventing electrical hazards and protecting your equipment.
Step 6: Connect the PSU to the Power Source
Plug the P221C’s input cable into a 220-240V AC power source. Ensure the power source can handle the PSU’s maximum current draw of 16 amperes.
Step 7: Power On and Verify Operation
Once everything is connected, power on the P221C PSU and then the M50S mining rig. Check the rig’s status to confirm it’s receiving power and operating normally.
Practical Applications and Operational Insights
The Whatsminer P221C PSU is designed to excel in demanding mining environments. Here are some real-world applications and tips for optimizing its performance:
- Large-Scale Mining Farms
The P221C’s high efficiency and robust design make it ideal for large-scale mining operations. Its ability to deliver stable power at 265 amperes ensures your M50S rigs operate at maximum hash rates without interruptions.
- Heat Management
With a 95% efficiency rating, the P221C generates less heat compared to lower-quality PSUs. Pair it with proper ventilation or cooling systems to maintain optimal operating temperatures in your mining facility.
- Energy Cost Reduction
The P221C’s high efficiency translates to significant energy savings, especially in operations running multiple rigs 24/7. Over time, these savings can offset the initial investment in the PSU.
- Global Deployment
The P221C’s compatibility with 220-240V AC power infrastructure makes it suitable for mining operations worldwide. Whether you’re setting up in North America, Europe, or Asia, the P221C ensures consistent performance.
Conclusion
The Whatsminer P221C PSU is a powerhouse of reliability and efficiency, making it an essential component for professional cryptocurrency mining operations. By following this guide, you can seamlessly connect the P221C to your Whatsminer M50S mining rig, ensuring stable power delivery and optimal performance.
With its universal compatibility, industrial-grade engineering, and cost-saving efficiency, the P221C is a smart investment for mining operators looking to maximize their ROI. Whether you’re running a small-scale setup or managing a large mining farm, the P221C delivers the performance and reliability you need to stay competitive in the ever-evolving world of cryptocurrency mining.
By choosing the P221C, you’re not just powering your mining rig—you’re powering your success.
