How to Install Avalon PSU3300-03 for Seamless Integration with Avalon Miners?
Cryptocurrency mining is a demanding operation that requires not only powerful hardware but also reliable and efficient power delivery systems. The Avalon PSU3300-03 is a state-of-the-art power supply unit (PSU) specifically designed to meet the rigorous demands of high-performance ASIC miners. In this article, we’ll walk you through the installation process of the Avalon PSU3300-03, ensuring seamless integration with your Avalon mining rigs. We’ll also explore its key features and advantages, providing practical insights to help you maximize your mining efficiency.
Product Introduction: The Avalon PSU3300-03

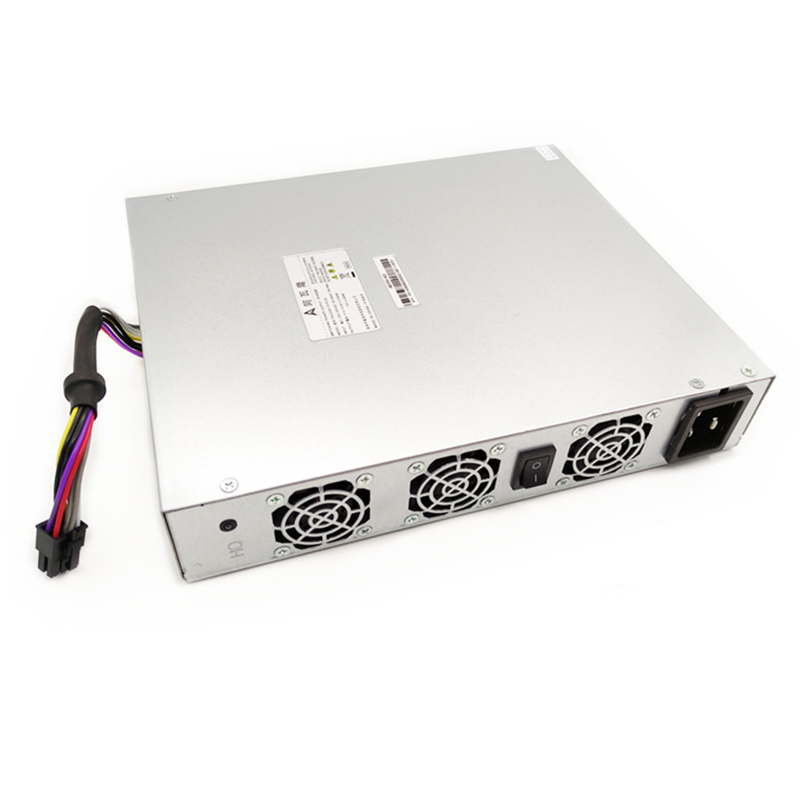

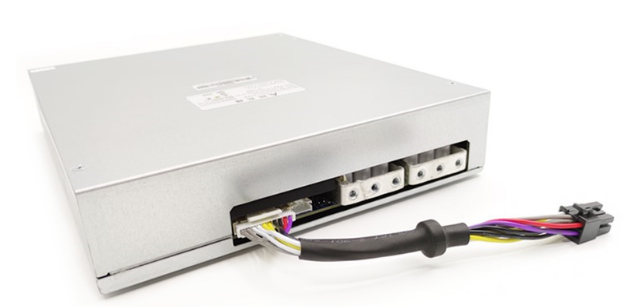

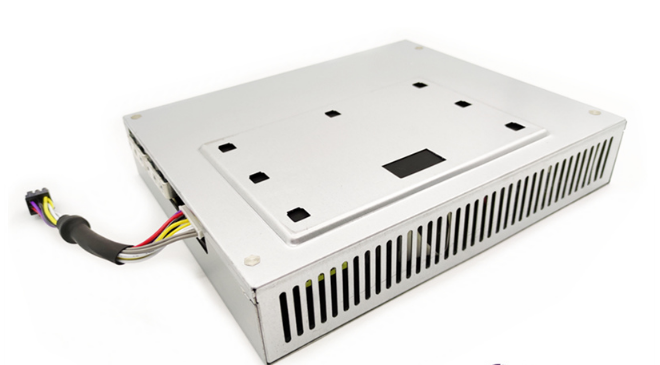

The Avalon PSU3300-03 is an industrial-grade power supply unit engineered by Canaan, the manufacturer behind the renowned Avalon miners. It is designed to deliver stable and efficient power to the latest generation of Avalon ASIC miners, including the A1166Pro, A1246, A1066, A1066Pro, and A1166 series. With a primary output capacity of 3100W and an auxiliary 12V/200W rail, this PSU ensures optimal power distribution for high-performance mining operations.
Key Specifications
- Input Voltage: 200-285V AC (wide-range compatibility for global use)
- Primary Output: 11.5-14.5V DC, 3100W
- Auxiliary Output: 12V DC, 200W
- Weight: 3.5 kg
- Compatibility: Avalon A1056 through A1266 series
The PSU3300-03 is built with premium components and advanced thermal management systems, making it a reliable choice for continuous mining operations. Its robust design ensures durability and efficiency, even in the most demanding environments.
Why Choose the Avalon PSU3300-03?
Before diving into the installation process, let’s explore the key advantages of the Avalon PSU3300-03 that make it a standout choice for cryptocurrency miners.
1. Original Manufacturing Excellence
The PSU3300-03 is a genuine Canaan Avalon product, ensuring top-tier quality and reliability. It is specifically engineered for professional mining operations, adhering to industry-leading performance standards. This guarantees compatibility and optimal performance with Avalon miners.
2. Versatile Compatibility
One of the standout features of the PSU3300-03 is its broad compatibility with multiple generations of Avalon miners. Whether you’re using the A1056 or the latest A1266 series, this PSU provides the flexibility to support various mining rig configurations. This makes it an excellent investment for both current and future upgrades.
3. Superior Power Management
With a dual-output configuration, the PSU3300-03 delivers up to 3100W of primary power and an additional 200W auxiliary output. This ensures stable and efficient power distribution, which is critical for maintaining the performance of high-performance mining equipment.
4. Industrial-Grade Reliability
The PSU3300-03 is built to withstand the rigors of continuous mining operations. Its robust design incorporates professional-grade components and comprehensive protection features, ensuring consistent performance and longevity in demanding environments.
Step-by-Step Installation Guide
Now that we’ve covered the product’s features and advantages, let’s move on to the installation process. Proper installation is crucial for ensuring the PSU3300-03 operates efficiently and safely.
Step 1: Safety First
Before starting the installation, ensure that all power sources are turned off and disconnected. Wear appropriate safety gear, such as insulated gloves, to protect yourself from electrical hazards.
Step 2: Unbox and Inspect the PSU3300-03
Carefully unbox the PSU3300-03 and inspect it for any visible damage. Ensure that all included components, such as power cables and connectors, are present and in good condition.
Step 3: Position the PSU
Place the PSU3300-03 in a well-ventilated area near your mining rig. Proper airflow is essential for maintaining optimal operating temperatures and preventing overheating.
Step 4: Connect the Input Power Cable
Connect the input power cable to the PSU3300-03’s AC input port. Ensure that the cable is securely connected and that the voltage matches your local power grid standards (200-285V AC).
Step 5: Connect the Primary Output Cable
Attach the primary output cable to the PSU3300-03’s DC output port. Connect the other end to your Avalon miner’s power input port. Double-check that the connections are secure to prevent power interruptions.
Step 6: Connect the Auxiliary Output Cable (if needed)
If your mining setup requires additional power, connect the auxiliary output cable to the PSU3300-03’s 12V output port. This can be used to power additional components, such as cooling fans or controllers.
Step 7: Power On and Test
Once all connections are secure, turn on the power supply and your mining rig. Monitor the system for any unusual behavior or errors. If everything is functioning correctly, your PSU3300-03 is ready to support your mining operations.
Practical Tips for Optimal Performance
To get the most out of your Avalon PSU3300-03, consider the following tips:
- Monitor Temperature: Ensure that the PSU and mining rig are adequately cooled. Overheating can reduce efficiency and lifespan.
- Regular Maintenance: Periodically inspect the PSU and cables for wear and tear. Replace any damaged components immediately.
- Power Load Management: Avoid overloading the PSU by ensuring that the total power consumption of your mining rig does not exceed the PSU’s capacity.
- Use Genuine Components: Always use original cables and connectors provided by Canaan to ensure compatibility and safety.
Conclusion
The Avalon PSU3300-03 is a powerful and reliable power supply unit designed to meet the demanding needs of cryptocurrency mining operations. Its advanced features, including versatile compatibility, superior power management, and industrial-grade reliability, make it an essential component for any Avalon mining setup. By following the installation guide and practical tips outlined in this article, you can ensure seamless integration and optimal performance of your mining rig.
Investing in the right power supply is crucial for maximizing your mining efficiency and profitability. With the Avalon PSU3300-03, you can power your mining operations with confidence, knowing that you’re using a product engineered for excellence.
