How to Install Avalon PSU3300-03 for Seamless Integration with Avalon Miners?
Cryptocurrency mining has evolved into a highly competitive and technical field, where efficiency and reliability are paramount. At the core of any successful mining operation lies the power supply unit (PSU), which ensures stable and consistent energy delivery to your mining hardware. The Avalon PSU3300-03 stands out as a top-tier solution specifically designed to meet the demanding needs of modern ASIC miners. In this article, we’ll walk you through the installation process of the Avalon PSU3300-03, highlighting its features, advantages, and practical applications to help you achieve seamless integration with your Avalon mining rigs.
Product Introduction: The Avalon PSU3300-03

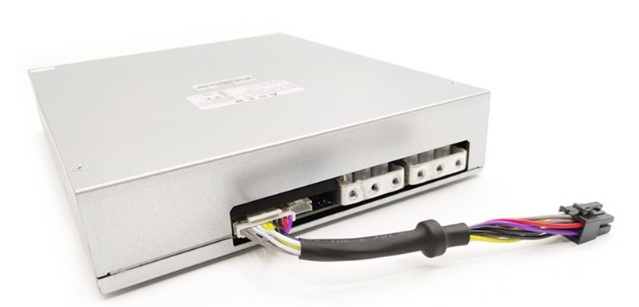

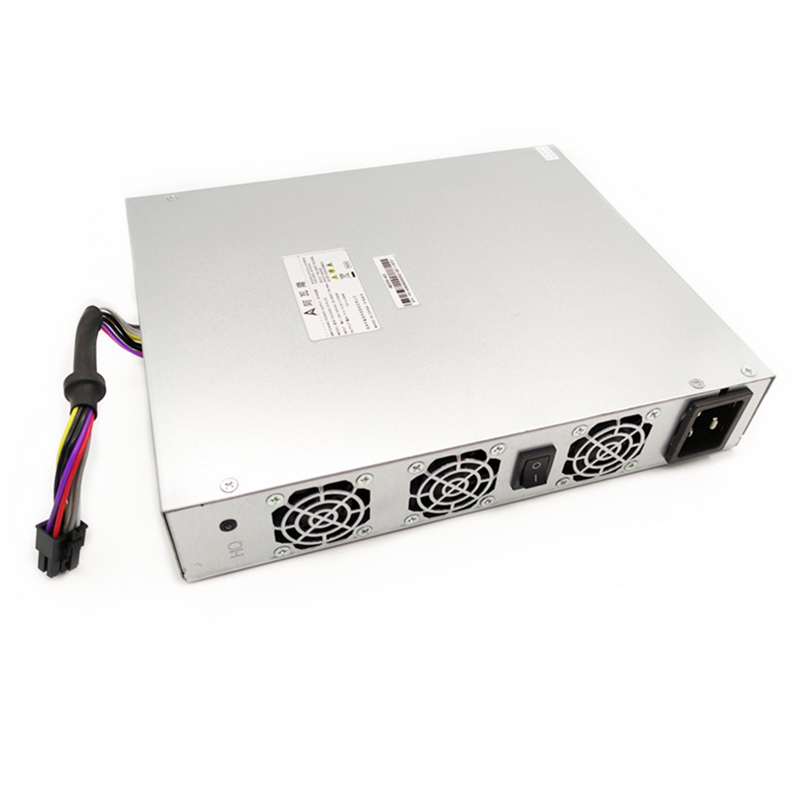

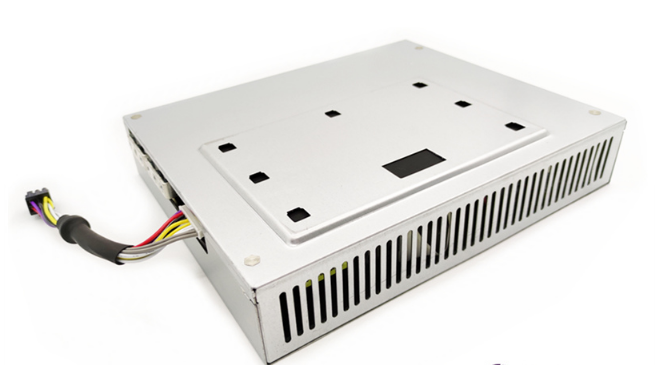

The Avalon PSU3300-03 is an industrial-grade power supply unit engineered by Canaan, the creators of the renowned Avalon miners. It is designed to deliver exceptional performance, reliability, and compatibility with Avalon’s latest generation of ASIC mining hardware. With a primary output capacity of 3100W and an auxiliary 12V/200W rail, this PSU is built to handle the high power demands of professional mining operations.
Key technical specifications include:
- Input Voltage Range: 200-285V AC, making it adaptable to various global power standards.
- Output Voltage Range: 11.5-14.5V DC, ensuring precise voltage regulation for optimal miner performance.
- Weight: 3.5 kg, featuring a compact yet robust design for easy integration into mining setups.
- Compatibility: Optimized for Avalon miners such as the A1166Pro, A1246, A1066, A1066Pro, and A1166 series.
The PSU3300-03 is not just a power supply; it’s a critical component that ensures your mining hardware operates at peak efficiency while minimizing downtime and maintenance costs.
Product Advantages: Why Choose the Avalon PSU3300-03?
Before diving into the installation process, it’s essential to understand why the Avalon PSU3300-03 is a superior choice for mining operators:
- Original Manufacturing Excellence
As a genuine Canaan Avalon product, the PSU3300-03 is built to the highest quality standards. Its components are specifically selected and tested for durability and performance, ensuring long-term reliability in demanding mining environments.
- Versatile Compatibility
The PSU3300-03 supports a wide range of Avalon miners, from the A1056 to the A1266 series. This versatility allows operators to standardize their power infrastructure across multiple rigs, simplifying maintenance and scalability.
- Superior Power Management
With a dual-output configuration delivering up to 3100W, the PSU3300-03 ensures stable and efficient power distribution. Its advanced voltage regulation system minimizes energy waste, helping you maximize your mining profitability.
- Industrial-Grade Reliability
Designed for continuous operation, the PSU3300-03 features robust thermal management systems and comprehensive protection mechanisms. These include over-voltage, over-current, and short-circuit protection, safeguarding both the PSU and your mining hardware.
Step-by-Step Installation Guide
Installing the Avalon PSU3300-03 is a straightforward process, but it requires careful attention to detail to ensure optimal performance and safety. Follow these steps for a seamless integration:
#### 1. Pre-Installation Preparation Before beginning the installation, gather the necessary tools and materials:
- Screwdrivers (Phillips and flathead)
- Power cables (included with the PSU3300-03)
- Grounding wire (if required by your setup)
- Safety gloves and goggles
Ensure that your mining rig is powered off and disconnected from any electrical source to prevent accidents.
#### 2. Mounting the PSU3300-03 The PSU3300-03 is designed for easy mounting in standard mining rig frames. Use the provided screws to securely attach the PSU to your rig’s chassis. Ensure that the unit is positioned in a well-ventilated area to facilitate proper heat dissipation.
#### 3. Connecting the Power Cables The PSU3300-03 comes with dedicated power cables for connecting to your Avalon miner. Follow these steps:
- Connect the primary power cable from the PSU’s main output to the miner’s power input.
- Attach the auxiliary power cable to the miner’s auxiliary power port (if applicable).
- Double-check all connections to ensure they are secure and properly seated.
#### 4. Grounding the PSU Proper grounding is crucial for safety and performance. Connect the PSU’s grounding terminal to a reliable ground source using a grounding wire. This step helps protect your equipment from electrical surges and static discharge.
#### 5. Powering Up the System Once all connections are secure, plug the PSU3300-03 into a compatible power outlet. Turn on the PSU and monitor the miner’s startup process. Verify that the miner is receiving stable power and operating as expected.
#### 6. Monitoring and Maintenance After installation, regularly monitor the PSU3300-03’s performance using your miner’s management software. Check for any signs of overheating or voltage fluctuations, and ensure that the PSU’s cooling fans are functioning properly.
Practical Applications and Operational Insights
The Avalon PSU3300-03 is ideal for both small-scale and large-scale mining operations. Its high power output and compatibility with multiple Avalon miners make it a versatile choice for operators looking to optimize their setups. Here are some practical scenarios where the PSU3300-03 shines:
- Scalability: The PSU3300-03’s broad compatibility allows operators to standardize their power infrastructure across multiple rigs, simplifying upgrades and expansions.
- Energy Efficiency: With its advanced power management features, the PSU3300-03 helps reduce energy consumption, lowering operational costs in the long run.
- Reliability in Harsh Environments: The PSU’s industrial-grade design ensures consistent performance even in high-temperature or dusty mining environments.
Conclusion
The Avalon PSU3300-03 is more than just a power supply; it’s a critical component that can significantly enhance the efficiency and reliability of your mining operations. By following the installation guide outlined above, you can seamlessly integrate the PSU3300-03 into your Avalon mining rigs and unlock its full potential.
Whether you’re a seasoned mining operator or just starting out, investing in a high-quality power supply like the Avalon PSU3300-03 is a decision that will pay dividends in terms of performance, stability, and profitability. With its superior engineering, versatile compatibility, and industrial-grade reliability, the PSU3300-03 is the perfect partner for your Avalon mining hardware.
