How to integrate Immersion Cooling Suite with existing mining rigs?
May 23, 2025
How to Integrate Immersion Cooling Suite with Existing Mining Rigs?
Cryptocurrency mining has evolved significantly over the years, with thermal management emerging as a critical factor in maintaining operational efficiency and hardware longevity. As mining rigs continue to push the boundaries of computational power, traditional cooling methods often fall short in addressing the heat generated by high-performance ASICs and GPUs. This is where the Immersion Cooling Suite comes into play—a groundbreaking solution designed to revolutionize thermal management in mining operations.
In this article, we’ll explore how to seamlessly integrate the Immersion Cooling Suite with your existing mining rigs, highlighting its unique advantages, technical architecture, and practical applications. Whether you’re managing a small-scale operation or a large mining farm, this guide will provide actionable insights to enhance your setup.
Understanding the Immersion Cooling Suite
The Immersion Cooling Suite is an advanced thermal management system specifically engineered for cryptocurrency mining. Unlike traditional air-cooling or liquid-cooling methods, this suite employs a single-loop oil circulation design that directly immerses mining hardware in a non-conductive dielectric fluid. This innovative approach eliminates the need for secondary heat exchange mechanisms, resulting in superior cooling efficiency and reduced maintenance requirements.
Key Components and Technical Architecture
The system comprises two primary components:

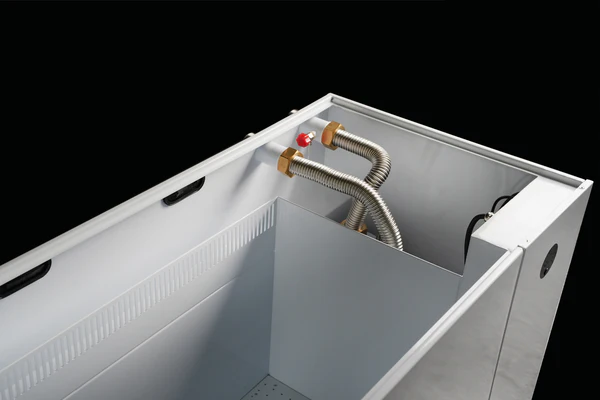

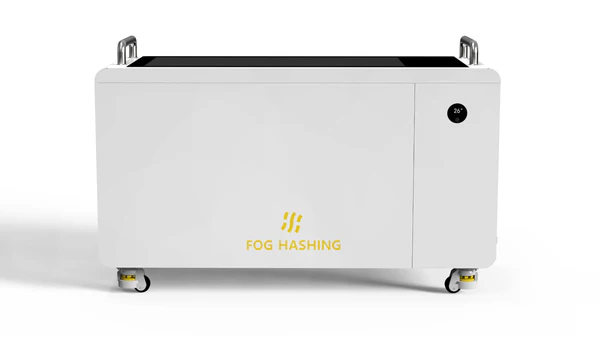

- Immersion Tank: A durable, precisely engineered chamber (912mm L × 404mm W × 355mm H) designed to house multiple mining units. The tank accommodates up to 6 S19/S21 or 8 M50/M60 miners, providing ample space for efficient coolant circulation.

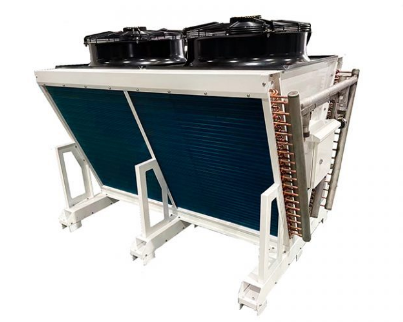

- Dry Cooler Unit: A robust cooling module (1185mm L × 530mm W × 760mm H) that dissipates heat from the dielectric fluid. Equipped with an intelligent EC motor system, the dry cooler dynamically adjusts fan speeds based on ambient temperature, ensuring optimal performance while minimizing energy consumption.
The suite’s 200L coolant capacity ensures consistent thermal management, even under demanding workloads. With a flow rate of 90L/min, the system maintains stable operating temperatures, preventing thermal throttling and extending hardware lifespan.
Why Choose Immersion Cooling for Your Mining Rigs?
Before diving into the integration process, it’s essential to understand the advantages of the Immersion Cooling Suite and how it addresses common pain points in mining operations.
1. Superior Cooling Efficiency
The single-loop oil circulation design eliminates inefficiencies associated with traditional cooling methods. By directly immersing hardware in dielectric fluid, the system achieves 28kW cooling capacity at 33°C, with sustained performance even at higher ambient temperatures.
2. Reduced Maintenance and Downtime
Traditional air-cooling systems often require frequent cleaning and maintenance due to dust accumulation. Immersion cooling eliminates this issue, as the sealed environment prevents contaminants from affecting hardware. Additionally, the absence of secondary heat exchangers reduces the risk of component failure, ensuring uninterrupted operation.
3. Energy Optimization
The integrated EC motor system intelligently adjusts fan speeds based on real-time temperature data, optimizing energy consumption without compromising cooling performance. At 220V/50Hz, the system consumes just 850W, significantly lowering operational costs compared to traditional cooling solutions.
4. Noise Reduction
Mining operations can be noisy, especially in large-scale setups. The Immersion Cooling Suite operates at just 45dB(A) at 10 meters, creating a quieter working environment without sacrificing performance.
Step-by-Step Integration Process
Integrating the Immersion Cooling Suite with your existing mining rigs is a straightforward process, thanks to its turnkey design. Here’s a step-by-step guide to help you get started:
Step 1: Assess Your Setup
Begin by evaluating your current mining configuration, including the number of rigs, their power consumption, and available space. Ensure that your facility meets the system’s power requirements (single-phase 200-240V, 50/60Hz).
Step 2: Prepare the Installation Area
Clear a designated area for the immersion tank and dry cooler. Ensure sufficient ventilation and access to power outlets. The compact dimensions of the suite make it suitable for both indoor and outdoor installations.
Step 3: Install the Immersion Tank

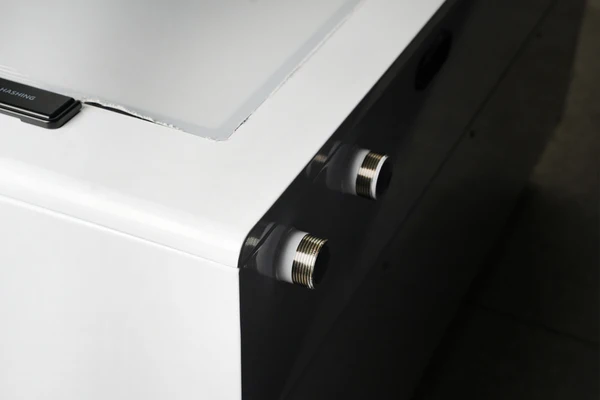

Place the immersion tank in the prepared area and secure it to prevent movement during operation. Connect the tank to the dry cooler using the included tubing, ensuring a tight seal to prevent leaks.
Step 4: Mount the Dry Cooler
Position the dry cooler in a location that allows for efficient heat dissipation. The system’s robust construction ensures reliable performance in diverse environmental conditions.
Step 5: Immerse Your Mining Rigs
Carefully place your mining rigs into the immersion tank, ensuring they are fully submerged in the dielectric fluid. Avoid overcrowding the tank to allow for proper coolant circulation.
Step 6: Power Up and Test
Connect the system to your power supply and activate the dry cooler. Monitor the temperature and flow rate to ensure optimal performance. The integrated EC motor system will automatically adjust fan speeds based on ambient conditions.
Practical Applications and Real-World Benefits
The Immersion Cooling Suite is designed to meet the demands of modern mining operations, offering tangible benefits across various scenarios:
1. High-Performance Mining Farms
For large-scale operations, the suite’s ability to cool multiple high-performance miners simultaneously ensures consistent output and reduced downtime. Its energy-efficient design also lowers operational costs, improving overall profitability.
2. Compact Mining Setups
Smaller operations can benefit from the suite’s compact footprint and ease of installation. Its quiet operation makes it ideal for urban environments or shared spaces.
3. Extreme Environmental Conditions
The integrated water mist system ensures reliable performance even in extreme temperatures up to 42°C, making it suitable for mining operations in challenging climates.
Conclusion: A Game-Changer for Mining Operations
The Immersion Cooling Suite represents a significant leap forward in cryptocurrency mining thermal management. Its innovative design, superior cooling efficiency, and energy optimization capabilities make it an invaluable asset for mining operators of all scales. By seamlessly integrating this system with your existing rigs, you can enhance performance, reduce costs, and extend hardware lifespan—all while maintaining a quieter and more sustainable operation.
Whether you’re looking to upgrade your current setup or optimize a new mining venture, the Immersion Cooling Suite offers a practical and future-proof solution tailored to the evolving needs of the cryptocurrency industry.
