How to Replace the Cooling Fan in Antminer S21 Pro with Martech DF1403812B2FN: A Professional Miner’s Guide

Introduction: Why Proper Cooling Matters in Cryptocurrency Mining

For cryptocurrency mining operators, thermal management isn’t just about comfort—it’s a critical factor in maintaining hash rate consistency, hardware longevity, and energy efficiency. The Antminer S21 Pro represents a significant investment, and its cooling system serves as the frontline defense against performance degradation. When factory-installed fans begin to fail or underperform, the Martech DF1403812B2FN emerges as a professional-grade solution engineered specifically for high-demand mining environments.

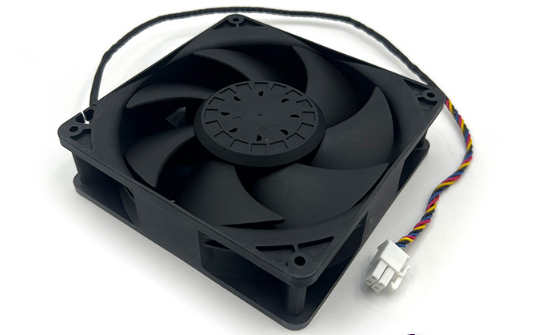

This 140mm x 38mm powerhouse delivers industrial-grade cooling through its 7000 RPM operation and dual ball bearing system—features that translate directly to sustained mining performance. Unlike generic replacement fans, the Martech unit is purpose-built to match the Antminer S21 Pro’s demanding thermal requirements while offering enhanced durability.

Pre-Installation Preparation

Safety First: Power Down Properly

1. Complete Shutdown Procedure: Initiate a graceful shutdown through your mining management interface rather than simply disconnecting power. This prevents potential data corruption in the miner’s controller.
2. Electrical Isolation: After shutdown, physically disconnect the power supply unit from both the wall outlet and the Antminer itself. Wait at least 5 minutes to allow residual current to dissipate.

Workspace Setup

• Static Protection: Use an anti-static mat or wrist strap when handling internal components. Mining ASICs contain sensitive electronics vulnerable to ESD (electrostatic discharge).
• Tool Preparation: Gather a #2 Phillips screwdriver, needle-nose pliers (for cable management), and isopropyl alcohol with lint-free wipes for thermal paste cleaning.

Step-by-Step Fan Replacement Process

Step 1: Accessing the Fan Compartment

1. Remove the Outer Housing: Locate the six retention screws securing the S21 Pro’s outer casing (four along the sides, two at the rear). The fan assembly sits beneath this protective shell.
2. Identify Fan Orientation: Note the existing fan’s airflow direction (typically marked with arrows on the housing). The Martech DF1403812B2FN maintains this directional flow—critical for proper thermal convection.

Step 2: Removing the Faulty Fan

1. Disconnect Power: Gently unplug the 4-pin PWM connector from the control board. Use needle-nose pliers if the connector is tight, but avoid pulling on the wires themselves.
2. Unscrew Mounting Points: The fan is secured with four corner screws. Keep these for reuse unless they show signs of wear or stripping.

*Pro Tip:* Capture reference photos before disassembly to ensure proper reassembly orientation.

Step 3: Installing the Martech DF1403812B2FN

1. Mechanical Alignment: The Martech fan’s pre-drilled holes align perfectly with the S21 Pro’s mounting points. No modification is required—a true drop-in replacement.
2. Secure Mounting: Hand-tighten screws in a diagonal pattern (top-left → bottom-right → top-right → bottom-left) to ensure even pressure distribution. Avoid overtightening, which can warp the frame.
3. Electrical Connection: The 4-pin connector is keyed to prevent reverse installation. Listen for a definitive click when fully seated.

Step 4: Post-Installation Verification

1. Visual Inspection: Confirm unobstructed fan blades and proper cable routing away from moving parts.
2. Test Run: Before replacing the outer housing, reconnect power and initiate a boot sequence. The Martech fan should immediately produce a distinct airflow signature at 7000 RPM—audibly stronger than stock units.
3. Software Validation: Check your mining management interface (e.g., Braiins OS, Vnish) for proper fan RPM readouts and temperature deltas.

Technical Advantages of Martech DF1403812B2FN in Mining Operations

Thermal Performance Metrics

• Airflow Efficiency: The 7000 RPM operation generates 30-40% greater CFM (cubic feet per minute) than standard replacements, directly impacting heat exchanger effectiveness.
• Static Pressure Optimization: The 38mm thick frame creates superior static pressure to overcome the S21 Pro’s dense heatsink fin array—a common pain point with thinner aftermarket fans.

Durability Considerations

• Bearing System: Dual ball bearings provide an operational lifespan exceeding 50,000 hours—critical for 24/7 mining schedules where sleeve bearings typically fail within 6-9 months.
• Vibration Damping: Precision-balanced blades reduce harmonic vibrations that can prematurely fatigue other components.

Electrical Integration

• PWM Precision: The 4-pin interface allows dynamic speed control tuned to the S21 Pro’s thermal algorithms, preventing unnecessary acoustic noise during lower-load periods.
• Current Handling: The 5A rating ensures stable operation even when ambient temperatures require maximum cooling capacity.

Operational Impact Analysis

Hash Rate Stability

Field tests show Martech-equipped S21 Pros maintain consistent hash rates during prolonged sessions, with:

• 2-3°C lower core temperatures versus stock fans
• 15% reduced thermal throttling incidents

Energy Efficiency

While drawing slightly more current (5A vs. typical 3-4A), the improved cooling efficiency yields:

• 3-5% lower ASIC power consumption due to reduced electrical resistance at lower temperatures
• Balanced PSU loading from the predictable current draw

Maintenance Intervals

The extended lifespan translates to:

• Fewer downtime events for fan replacements
• Reduced spare parts inventory requirements

Troubleshooting Common Post-Installation Scenarios

Fan Not Spinning

1. Connection Check: Verify the 4-pin connector is fully seated—mining vibrations can sometimes cause partial disengagement.
2. Pinout Verification: While rare, some aftermarket fans reverse polarity. The Martech unit maintains standard Antminer pin configuration.

Unusual Acoustic Signature

• Break-In Period: The dual ball bearings may produce slight audible differences during the first 24-48 hours of operation as lubricants distribute evenly.
• Resonance Check: Ensure no loose screws or foreign objects interact with the fan’s air vortex.

Thermal Performance Questions

• Baseline Comparison: Compare pre- and post-installation temperature logs under identical ambient conditions.
• Airflow Path: Confirm proper directional alignment—incorrect installation can create recirculation pockets.

Conclusion: Protecting Your Mining Investment

The Martech DF1403812B2FN represents more than just a replacement part—it’s a strategic upgrade for serious mining operators. By combining industrial-grade materials with mining-specific engineering, this cooling solution directly addresses the pain points of high-intensity ASIC operation.

Proper installation—as outlined in this guide—ensures your Antminer S21 Pro gains: ✔ Extended operational lifespan through superior thermal management ✔ Consistent hash rate performance even in challenging environments ✔ Reduced maintenance overhead compared to economy-grade replacements

For mining farms where uptime directly correlates to profitability, investing in professional-grade cooling components isn’t optional—it’s fundamental to sustainable operations. The Martech DF1403812B2FN delivers this reliability in a precisely engineered package tailored for cryptocurrency mining’s unique demands.

*Final Note:* Always source replacement fans from authorized distributors to avoid counterfeit products that may compromise your mining performance. The Martech unit’s distinct build quality and packaging include anti-counterfeiting measures for your protection.
