How to Set Up APW12 8000W PSU for Efficient Overclocking?
Cryptocurrency mining has evolved into a highly competitive industry where efficiency and performance are paramount. For mining operators, achieving maximum hash rates while minimizing power consumption is the ultimate goal. Overclocking has become a popular strategy to push mining hardware to its limits, but it requires a robust and reliable power supply unit (PSU) to handle the increased demands. Enter the APW12 8000W PSU, a game-changing power delivery solution designed specifically for high-performance mining operations, particularly when overclocking Bitmain’s Antminer S19 series.
In this guide, we’ll walk you through the process of setting up the APW12 8000W PSU for efficient overclocking, highlighting its unique features and advantages that make it the ideal choice for professional mining setups.

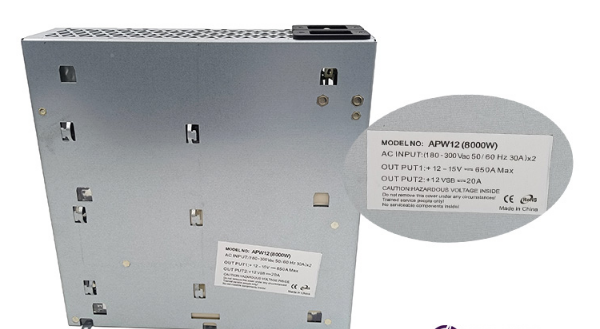

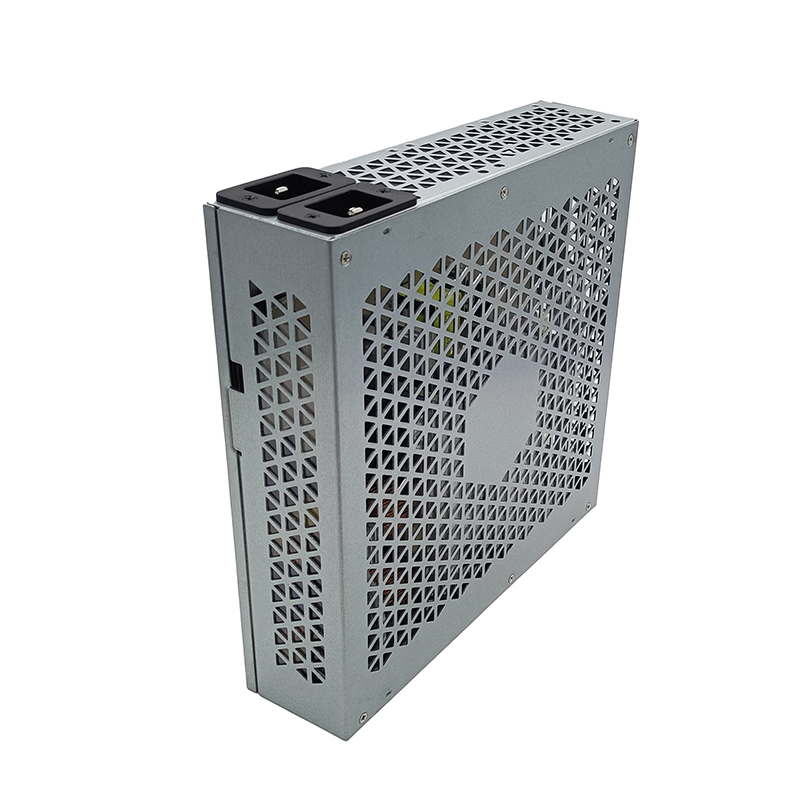

Understanding the APW12 8000W PSU
Before diving into the setup process, it’s essential to understand what makes the APW12 8000W PSU stand out in the crowded market of mining power supplies. Engineered by Bitmain, this PSU is purpose-built for the Antminer S19 series, which includes the S19, S19 Pro, and S19j models. With an impressive 8000W output capacity, it can easily handle the power demands of overclocked miners, ensuring stable and efficient operation.
The APW12 8000W PSU is designed to operate within a wide input voltage range of 260V to 305V, making it suitable for industrial mining facilities with varying power conditions. Its operational temperature range of -20°C to 45°C ensures reliability even in extreme environments, whether you’re running a large-scale mining farm or a smaller, immersion-cooled setup. Additionally, the PSU’s compact form factor and lightweight design (just 2.4 kg) make it easy to integrate into existing mining rigs without compromising on performance.
Why Choose the APW12 8000W PSU for Overclocking?
Overclocking your Antminer S19 series can significantly boost your hash rate, but it also increases power consumption and heat generation. The APW12 8000W PSU is specifically engineered to address these challenges, offering several key advantages:
- Advanced Cooling Capability:
The APW12 8000W PSU is designed to work seamlessly with immersion cooling systems, which are increasingly popular for their superior thermal management. By maintaining optimal temperatures, immersion cooling allows miners to push their hardware further without risking overheating.
- Optimized for Antminer S19 Series:
This PSU is tailor-made for the Antminer S19 series, ensuring compatibility and stability when overclocking. It delivers consistent power output, reducing the risk of voltage fluctuations that could damage your hardware.
- Comprehensive Protection Suite:
The APW12 8000W PSU features multiple safety mechanisms, including short circuit protection, overcurrent protection, overvoltage protection, and overtemperature protection. These safeguards ensure that both the PSU and your mining equipment remain safe during extended overclocking sessions.
- Industrial-Grade Performance:
With its 8000W output capacity and wide input voltage tolerance, the APW12 is built to handle the rigorous demands of professional mining operations. Whether you’re running a single miner or a large-scale farm, this PSU delivers reliable, uninterrupted power.
- Environmental Adaptability:
The PSU can operate in diverse conditions, with a humidity tolerance of 0-90% and altitude compatibility up to 2000 meters. This makes it suitable for mining facilities located in various geographic regions.
Step-by-Step Guide to Setting Up the APW12 8000W PSU for Overclocking
Now that you understand the advantages of the APW12 8000W PSU, let’s dive into the practical steps for setting it up for efficient overclocking.
#### Step 1: Prepare Your Mining Setup Before installing the PSU, ensure that your Antminer S19 series is ready for overclocking. This includes:
- Verifying that your miner is running the latest firmware.
- Ensuring proper cooling solutions are in place, especially if you’re using immersion cooling.
- Double-checking all connections and cables for wear or damage.
#### Step 2: Connect the PSU to Your Miner The APW12 8000W PSU comes with dedicated cables for the Antminer S19 series. Follow these steps to connect the PSU:
- Power Off: Ensure both the miner and PSU are powered off before making any connections.

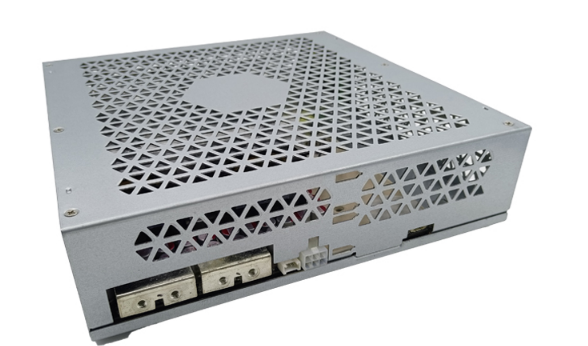

- Connect the Cables: Attach the PSU’s output cables to the corresponding ports on your Antminer. The APW12 uses a 6-pin PCIe connector for each hash board, ensuring secure and stable power delivery.
- Secure Connections: Double-check that all connections are tight and secure to prevent power interruptions.

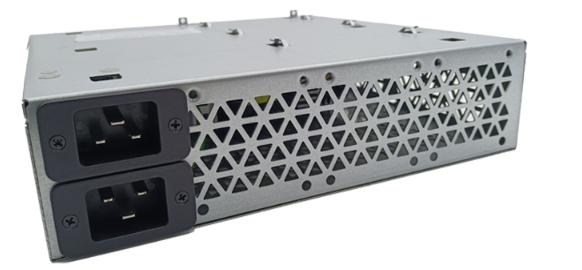

#### Step 3: Configure Power Input The APW12 8000W PSU is designed for high-voltage industrial power supplies. Connect the PSU to a 260V to 305V power source using the appropriate input cables. Ensure that your power source can handle the increased load, especially when overclocking.
#### Step 4: Test the Setup Before overclocking, test the setup to ensure everything is functioning correctly:
- Power on the PSU and miner.
- Check for any warning lights or error messages on the miner’s control panel.
- Monitor the power consumption and temperature levels to ensure they’re within safe ranges.
#### Step 5: Adjust Overclocking Settings Once the setup is confirmed to be working correctly, you can begin overclocking your Antminer S19 series. Access the miner’s control interface and adjust the following settings:
- Frequency: Gradually increase the frequency to boost the hash rate.
- Voltage: Adjust the voltage to match the increased frequency, ensuring stable power delivery.
- Fan Speed: If using air cooling, increase fan speed to manage higher temperatures.
#### Step 6: Monitor Performance After overclocking, closely monitor the miner’s performance and the PSU’s output. Keep an eye on:
- Hash Rate: Ensure the miner is achieving the desired performance boost.
- Temperature: Watch for any signs of overheating, especially if you’re not using immersion cooling.
- Power Consumption: Verify that the PSU is handling the increased load without issues.
Tips for Maximizing Efficiency
To get the most out of your APW12 8000W PSU and overclocked Antminer S19 series, consider the following tips:
- Use Immersion Cooling: If possible, pair the APW12 with an immersion cooling system to maximize thermal efficiency and extend hardware lifespan.
- Maintain Clean Power: Ensure your power source is stable and free from fluctuations to prevent disruptions.
- Regular Maintenance: Periodically inspect cables, connectors, and the PSU itself for signs of wear or damage.
Conclusion
The APW12 8000W PSU is a powerful and reliable solution for cryptocurrency mining operators looking to maximize their efficiency through overclocking. Its advanced cooling capabilities, comprehensive protection features, and industrial-grade performance make it the ideal choice for pushing your Antminer S19 series to its limits. By following the setup guide outlined above, you can achieve optimal performance while ensuring the safety and longevity of your mining hardware.
Whether you’re running a small-scale operation or managing a large mining farm, the APW12 8000W PSU is a smart investment that delivers real-world benefits. With its ability to handle the rigors of overclocking and immersion cooling, this PSU is a must-have for serious miners aiming to stay ahead in the competitive world of cryptocurrency mining.
