How to Troubleshoot Common Issues with Antminer T21 PDU125-12AC1 in Mining Operations?

The Antminer T21 PDU125-12AC1 is a high-performance power distribution unit (PDU) engineered specifically for cryptocurrency mining operations. Its robust design, flexible configuration options, and industrial-grade reliability make it an essential component in large-scale mining setups. However, like any sophisticated piece of equipment, the Antminer T21 PDU125-12AC1 can encounter operational challenges. This article provides practical troubleshooting guidance for common issues, ensuring your mining operations run smoothly and efficiently.

---

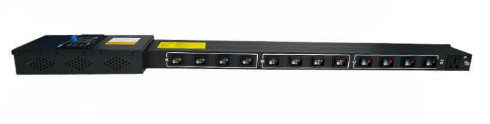

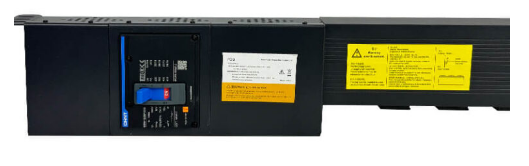

Understanding the Antminer T21 PDU125-12AC1

Before diving into troubleshooting, it’s essential to understand the key features and specifications of the Antminer T21 PDU125-12AC1:

• Power Capacity: 85KW output capacity, ideal for large-scale mining operations.
• Input Voltage Range: 346-480V AC, three-phase + neutral + protective earth configuration.
• Output Ports: 12 output ports with 6-pin connectors plus one AC30 3-in-1 multifunctional port.
• Safety Features: IP20 protection rating, 125A/4P input current specification, and 500V voltage withstand capacity.
• Durability: Industrial-grade materials, including copper and aluminum components, ensure long-term reliability.
• Environmental Compatibility: Operates in temperatures from -20°C to 40°C and relative humidity levels of 5%-90% without condensation.

These features make the Antminer T21 PDU125-12AC1 a versatile and reliable choice for mining operations. However, understanding how to address potential issues is crucial for maintaining optimal performance.

---

Common Issues and Troubleshooting Steps

1. Power Distribution Inefficiency

Issue: Uneven power distribution across mining rigs or insufficient power delivery to certain devices.

Troubleshooting:

• Check Load Balancing: Ensure the power load is evenly distributed across the PDU’s 12 output ports. Overloading a single port can lead to inefficiencies and potential failures.
• Verify Input Voltage: Confirm the input voltage is within the specified range (346-480V AC). Incorrect voltage levels can cause inconsistent power distribution.
• Inspect Connections: Check all cable connections for loose or damaged wires. Secure connections are critical for stable power delivery.
• Monitor Output Ports: Use a multimeter to measure the voltage at each output port. Significant variations may indicate a faulty port or internal wiring issue.

Prevention Tip: Regularly review your mining setup and redistribute devices to ensure balanced power consumption across all ports.

---

2. Overheating

Issue: The PDU becomes excessively hot during operation, potentially leading to reduced efficiency or damage.

Troubleshooting:

• Assess Ventilation: Ensure the PDU is installed in a well-ventilated area. Poor airflow can cause overheating, especially in high-temperature environments.
• Check Ambient Temperature: Verify that the operating environment remains within the specified temperature range (-20°C to 40°C). Excessive ambient heat can strain the PDU’s cooling mechanisms.
• Inspect Internal Components: Look for signs of wear or damage to the PDU’s internal components, such as burnt wires or discolored circuit boards.
• Reduce Load: If the PDU is operating near its maximum capacity, consider reducing the load to prevent overheating.

Prevention Tip: Install temperature sensors in your mining facility to monitor ambient conditions and promptly address any anomalies.

---

3. Circuit Breaker Tripping

Issue: The 125A circuit breaker trips frequently, disrupting power to connected mining devices.

Troubleshooting:

• Evaluate Power Load: Calculate the total power consumption of your mining rigs and ensure it does not exceed the PDU’s 85KW capacity.
• Check for Short Circuits: Inspect all connected devices and cables for short circuits or electrical faults.
• Test Circuit Breaker: Use a multimeter to test the circuit breaker’s functionality. A faulty breaker may trip unnecessarily.
• Upgrade Wiring: Ensure the PDU’s input wiring can handle the required current. Inadequate wiring can cause the breaker to trip.

Prevention Tip: Implement a power management system to monitor and optimize power consumption across your mining operation.

---

4. Output Port Malfunction

Issue: One or more output ports fail to deliver power.

Troubleshooting:

• Inspect Port Connectors: Check for physical damage or debris in the output port connectors.
• Test with Alternate Devices: Connect a known working device to the port to determine if the issue lies with the PDU or the original connected device.
• Measure Output Voltage: Use a multimeter to verify the voltage at the malfunctioning port. A lack of voltage suggests an internal wiring or component issue.
• Reset the PDU: Power cycle the PDU by disconnecting and reconnecting the input power source. This can resolve temporary glitches.

Prevention Tip: Regularly clean and inspect all output ports to maintain optimal connectivity.

---

5. Inconsistent Performance in High-Altitude Locations

Issue: The PDU exhibits unstable performance in mining facilities located at elevations above 2000 meters.

Troubleshooting:

• Verify Environmental Conditions: Ensure the operating temperature and humidity levels remain within the specified range.
• Check Air Density: High-altitude locations have lower air density, which can affect cooling efficiency. Consider installing additional cooling systems.
• Monitor Power Input: High-altitude areas may experience voltage fluctuations. Use a voltage stabilizer to maintain consistent power input.

Prevention Tip: Choose PDUs specifically designed for high-altitude operations if your mining facility is located in such an area.

---

Best Practices for Maintaining the Antminer T21 PDU125-12AC1

To minimize the likelihood of encountering issues, follow these maintenance tips:

1. Regular Inspections: Schedule routine inspections to check for signs of wear, loose connections, or other potential problems.
2. Cleanliness: Keep the PDU and surrounding area free of dust and debris, which can interfere with performance.
3. Load Management: Continuously monitor and optimize power distribution to avoid overloading the PDU.
4. Documentation: Maintain detailed records of power usage, inspections, and any issues encountered. This data can help identify patterns and prevent future problems.
5. Training: Ensure your team is trained on proper PDU operation and troubleshooting techniques.

By implementing these best practices, you can maximize the lifespan and efficiency of your Antminer T21 PDU125-12AC1.

---

Conclusion

The Antminer T21 PDU125-12AC1 is a powerful and reliable solution for managing power distribution in cryptocurrency mining operations. While it is designed to withstand the demands of industrial environments, occasional issues may arise. By understanding the common challenges and following the troubleshooting steps outlined in this article, you can quickly resolve problems and maintain uninterrupted mining operations.

Remember, proactive maintenance and careful monitoring are key to ensuring the long-term success of your mining setup. With the right approach, the Antminer T21 PDU125-12AC1 will continue to deliver the performance and reliability your operation depends on.
