How to Troubleshoot Issues with Antminer T21 PDU125-12AC1 in Cryptocurrency Mining Farms?

Cryptocurrency mining operations rely heavily on reliable and efficient power distribution units (PDUs) to ensure uninterrupted performance. The Antminer T21 PDU125-12AC1 is a high-performance PDU specifically designed for large-scale mining farms, offering robust power management and advanced safety features. However, even the most reliable equipment can encounter issues in demanding mining environments. This article provides a comprehensive guide to troubleshooting common problems with the Antminer T21 PDU125-12AC1, ensuring optimal performance and minimal downtime.

---

Introduction to the Antminer T21 PDU125-12AC1

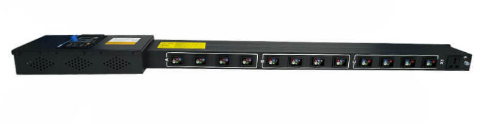

The Antminer T21 PDU125-12AC1 is an industrial-grade power distribution unit engineered for cryptocurrency mining operations. With an impressive output capacity of 85KW, it is ideal for powering multiple mining devices in large-scale deployments. Its versatile design supports a wide input voltage range of 346-480V AC with a three-phase + neutral + protective earth configuration, making it adaptable to various power setups.

The PDU features 12 output ports with 6-pin connectors and one AC30 3-in-1 multifunctional port, enabling flexible power distribution across multiple mining rigs. Built with industrial-grade materials, including 252g of copper and 502g of aluminum components, the unit ensures exceptional durability and thermal management. Its compact form factor (1100mm × 125mm × 70mm) and lightweight design (5.6KG) facilitate easy installation in mining facilities.

---

Key Advantages of the Antminer T21 PDU125-12AC1

Before diving into troubleshooting, it’s essential to understand the unique advantages of this PDU:

1. Flexible Configuration Options: The PDU supports both three-phase and single-phase configurations, making it adaptable to various mining setups and future expansions.

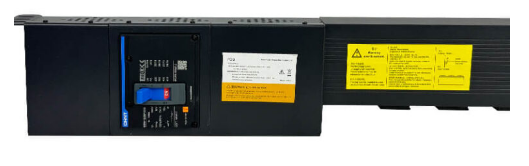

2. Professional-Grade Protection: Equipped with a 125A circuit breaker and 500V voltage withstand capacity, the unit provides comprehensive protection against overloads and short circuits.
3. Industrial Reliability: Designed for continuous operation in demanding environments, the PDU maintains stable performance across a wide temperature range (-20°C to 40°C) and challenging conditions.
4. Space-Efficient Design: The compact yet powerful design optimizes rack space utilization while delivering substantial 85KW output power.

---

Common Issues and Troubleshooting Tips

Despite its robust design, the Antminer T21 PDU125-12AC1 may encounter issues in mining farms due to environmental factors, improper installation, or operational errors. Below are some common problems and practical solutions:

1. Power Output Failure

Symptoms:

• One or more output ports are not delivering power.
• Mining devices connected to the PDU are not functioning.

Possible Causes:

• Loose or improperly connected cables.
• Circuit breaker tripping due to overload or short circuit.
• Faulty output port or internal wiring.

Troubleshooting Steps:

1. Check Cable Connections: Ensure all cables are securely connected to the correct ports. Inspect for any visible damage to the cables or connectors.
2. Reset the Circuit Breaker: If the circuit breaker has tripped, disconnect some devices to reduce the load, then reset the breaker.
3. Test Output Ports: Use a multimeter to verify voltage output at each port. If a specific port is faulty, avoid using it and contact the supplier for repair or replacement.

---

2. Overheating

Symptoms:

• The PDU feels excessively hot to the touch.
• Reduced power output or intermittent failures.

Possible Causes:

• High ambient temperatures in the mining facility.
• Overloading the PDU beyond its rated capacity.
• Poor ventilation or airflow around the unit.

Troubleshooting Steps:

1. Monitor Ambient Temperature: Ensure the facility temperature stays within the PDU’s operating range (-20°C to 40°C). Use cooling systems like fans or air conditioning to maintain optimal conditions.
2. Balance the Load: Distribute power evenly across all output ports to prevent overloading. Avoid exceeding the PDU’s 85KW capacity.
3. Improve Ventilation: Position the PDU in a well-ventilated area with adequate airflow. Avoid placing it near heat sources or other equipment that generates heat.

---

3. Input Power Instability

Symptoms:

• Fluctuations in power output.
• Mining devices experiencing intermittent shutdowns.

Possible Causes:

• Unstable input voltage from the power source.
• Loose or damaged input wiring.
• Power surges or spikes in the facility’s electrical system.

Troubleshooting Steps:

1. Verify Input Voltage: Use a voltage meter to check the input voltage. Ensure it falls within the PDU’s specified range (346-480V AC).
2. Inspect Input Wiring: Check for loose or damaged connections at the input terminals. Tighten or replace as necessary.
3. Install Surge Protectors: Use surge protectors or voltage stabilizers to safeguard the PDU from power fluctuations.

---

4. Circuit Breaker Tripping Frequently

Symptoms:

• The circuit breaker trips repeatedly, cutting off power.

Possible Causes:

• Overloading the PDU beyond its 125A capacity.
• Short circuits in connected devices or wiring.
• Faulty circuit breaker.

Troubleshooting Steps:

1. Reduce the Load: Disconnect some devices to lower the total power consumption below the PDU’s rated capacity.
2. Check for Short Circuits: Inspect all connected devices and wiring for potential short circuits. Repair or replace damaged components.
3. Test the Circuit Breaker: If the breaker continues to trip after reducing the load and checking for short circuits, it may be faulty. Replace it with a compatible unit.

---

5. No Power Output

Symptoms:

• The PDU is completely non-functional.

Possible Causes:

• Power supply interruption.
• Faulty input wiring or connectors.
• Internal component failure.

Troubleshooting Steps:

1. Check Power Supply: Verify that the facility’s main power supply is active and functioning.
2. Inspect Input Connections: Ensure the input wiring is securely connected and free of damage.
3. Contact Supplier: If the PDU remains non-functional after checking the power supply and connections, it may have an internal fault. Contact the supplier for professional repair or replacement.

---

Preventive Maintenance Tips

To minimize issues and extend the lifespan of the Antminer T21 PDU125-12AC1, consider the following preventive measures:

1. Regular Inspections: Periodically check all connections, cables, and components for signs of wear or damage.
2. Load Monitoring: Avoid exceeding the PDU’s rated capacity by monitoring power consumption across all connected devices.
3. Environmental Control: Maintain optimal temperature and humidity levels in the mining facility to prevent overheating and condensation.
4. Surge Protection: Install surge protectors to safeguard the PDU from voltage spikes and fluctuations.
5. Documentation: Keep detailed records of installation, maintenance, and troubleshooting activities for future reference.

---

Conclusion

The Antminer T21 PDU125-12AC1 is a reliable and versatile power distribution unit designed for cryptocurrency mining farms. By understanding its features and potential issues, mining operators can troubleshoot problems effectively and maintain uninterrupted operations. Regular maintenance and proactive monitoring are key to maximizing the PDU’s performance and ensuring the success of your mining endeavors. With its robust design and advanced safety features, the Antminer T21 PDU125-12AC1 remains a trusted choice for powering large-scale mining operations.
