Is the Antminer T21 PDU125-12AC1 Compatible with 200-227VAC Single-Phase Mining Rigs?

Introduction

In the world of cryptocurrency mining, power distribution is a critical component that often determines the efficiency and reliability of an entire operation. The Antminer T21 PDU125-12AC1 is a high-performance Power Distribution Unit (PDU) designed specifically for industrial-scale mining setups. With its robust 85KW output capacity, industrial-grade construction, and flexible power distribution options, this PDU is engineered to meet the demanding needs of modern mining farms.

One of the most common questions miners ask is whether this PDU can support 200-227VAC single-phase mining rigs, given that many ASIC miners and auxiliary equipment operate within this voltage range. In this article, we’ll explore the T21 PDU125-12AC1’s compatibility with single-phase setups, its key advantages, and how it can optimize power management in different mining environments.

---

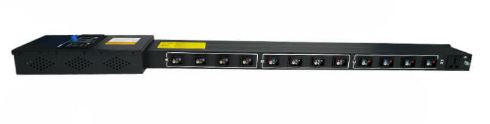

Understanding the Antminer T21 PDU125-12AC1

Before diving into compatibility, let’s first examine the core specifications and design of the T21 PDU125-12AC1:

• Input Voltage: 346-480V AC (three-phase + neutral + protective earth)
• Output Ports: 12 x 6-pin connectors + 1 AC30 3-in-1 multifunctional port
• Max Output Capacity: 85KW
• Circuit Protection: 125A/4P input current with a 500V withstand capacity
• Operating Conditions: -20°C to 40°C, up to 2000m elevation
• Durability: Industrial-grade materials (252g copper, 502g aluminum)

While the PDU is primarily designed for three-phase power distribution, its dual-voltage output capability (346-480V and 200-227VAC) makes it adaptable for different mining setups.

---

Compatibility with 200-227VAC Single-Phase Mining Rigs

1. Dual-Voltage Output Flexibility

The T21 PDU125-12AC1 supports both three-phase and single-phase outputs, meaning it can indeed power 200-227VAC single-phase mining rigs. However, there are some important considerations:

• Wiring Configuration:
• For single-phase use, the PDU must be correctly wired to step down the input voltage (346-480V three-phase) to the required 200-227VAC single-phase output.
• The AC30 3-in-1 port allows for flexible connections, enabling miners to adapt the PDU for single-phase loads.

• Power Distribution Efficiency:
• While the PDU can handle single-phase loads, its optimal performance is achieved in a balanced three-phase setup.
• Running too many single-phase rigs on one phase may lead to phase imbalance, reducing efficiency and potentially tripping breakers.

2. Practical Applications for Single-Phase Mining Rigs

Despite being designed for three-phase power, the T21 PDU125-12AC1 can still be used effectively with single-phase miners in scenarios such as:

• Mixed Mining Farms: Some facilities run a combination of high-voltage ASICs (e.g., Antminer S19 series) and lower-voltage single-phase rigs (e.g., GPU miners or older ASICs). The PDU’s flexible outputs allow for simultaneous power distribution to both types of equipment.
• Small to Medium-Scale Operations: Miners with limited access to three-phase power can still utilize this PDU by configuring it for single-phase output, though at a reduced total capacity compared to three-phase usage.
• Backup Power Management: In cases where a mining farm experiences a phase failure, the PDU can be temporarily reconfigured to distribute power via the remaining phases, minimizing downtime.

---

Key Advantages of the T21 PDU125-12AC1 for Mining Operations

1. High Power Capacity & Scalability

With an 85KW output, this PDU is built for large-scale mining farms, allowing miners to consolidate power distribution instead of relying on multiple smaller PDUs. The 12 output ports provide flexibility for expanding operations without requiring additional infrastructure.

2. Industrial-Grade Durability & Safety

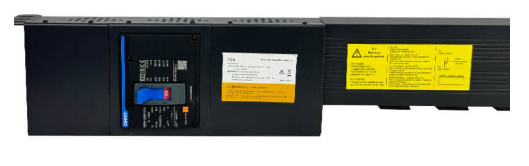

• 125A Circuit Breaker: Protects against overloads and short circuits, safeguarding expensive mining hardware.
• IP20 Protection: Shields against dust and accidental contact, crucial for long-term reliability in harsh mining environments.
• Thermal Management: The copper and aluminum construction ensures efficient heat dissipation, reducing the risk of overheating.

3. Space-Efficient & Easy Installation

Measuring just 1100mm × 125mm × 70mm and weighing 5.6KG, the PDU is compact yet powerful, making it ideal for densely packed mining racks.

4. Global Voltage Compatibility

The wide input range (346-480V) and 50/60Hz frequency support make it suitable for mining farms worldwide, eliminating the need for additional transformers in most regions.

---

Best Practices for Using the T21 PDU125-12AC1 with Single-Phase Rigs

If you plan to use this PDU with 200-227VAC single-phase miners, follow these best practices:

1. Balance the Load Across Phases – Avoid overloading a single phase; distribute single-phase rigs evenly to maintain stability.
2. Use Step-Down Transformers if Needed – If your input voltage is too high, a transformer can help adjust it to the required 200-227VAC range.
3. Monitor Power Consumption – Use a power meter or monitoring system to track phase loads and prevent imbalances.
4. Consult an Electrician for Wiring – Properly configuring the PDU for single-phase output requires technical expertise to ensure safety and efficiency.

---

Conclusion

The Antminer T21 PDU125-12AC1 is a versatile and powerful power distribution solution that can support 200-227VAC single-phase mining rigs, though it is optimized for three-phase setups. Its dual-voltage capability, high power capacity, and industrial-grade durability make it an excellent choice for both large-scale mining farms and mixed-voltage environments.

For miners looking to maximize efficiency, the key lies in proper load balancing and wiring configuration. When used correctly, this PDU can significantly enhance power management, reduce downtime, and improve the overall profitability of mining operations.

Whether you’re running a three-phase Bitcoin farm or integrating single-phase ASICs/GPUs, the T21 PDU125-12AC1 offers the flexibility and reliability needed to keep your mining operation running smoothly.
