What is the Space Requirement for Immersion Cooling Suite Installation in Mining Facilities?
Cryptocurrency mining has evolved significantly over the years, with advancements in hardware and cooling technologies driving efficiency and scalability. Among these innovations, immersion cooling has emerged as a game-changer for thermal management in mining operations. The [Immersion Cooling Suite] is at the forefront of this revolution, offering an integrated solution designed to maximize performance while minimizing operational challenges. For mining operators considering this technology, understanding the space requirements for installation is crucial to optimizing facility layouts and ensuring seamless integration.
In this article, we’ll explore the space considerations for installing the [Immersion Cooling Suite], its key features, and how it can transform your mining operations. By the end, you’ll have a clear understanding of how to plan for this advanced cooling system in your facility.
Introducing the Immersion Cooling Suite: A Breakthrough in Thermal Management
The [Immersion Cooling Suite] is a state-of-the-art thermal management solution specifically designed for high-performance cryptocurrency mining operations. Unlike traditional air-cooling systems, which rely on fans and heat sinks, this suite employs direct immersion cooling technology. This method submerges mining hardware in a dielectric fluid, which efficiently absorbs and dissipates heat, ensuring optimal operating temperatures even under heavy workloads.
At its core, the [Immersion Cooling Suite] is engineered for simplicity and reliability. Its single-loop design eliminates the need for complex secondary heat exchange mechanisms, reducing maintenance requirements and improving overall system efficiency. The suite integrates a precision-engineered dry cooler with a dedicated immersion tank, creating a comprehensive cooling solution that supports multiple high-performance mining units.
Key Features of the Immersion Cooling Suite
Before diving into the space requirements, it’s essential to understand the suite’s standout features, which make it a compelling choice for mining operators:
- Advanced Thermal Engineering: The single-loop oil circulation design simplifies the cooling process while enhancing reliability. By removing secondary heat exchange systems, the suite delivers superior cooling efficiency with minimal upkeep.
- Integrated Solution Design: The [Immersion Cooling Suite] is a turnkey system that combines the immersion tank and dry cooler into one cohesive package. This integration reduces installation time and complexity, allowing operators to quickly deploy the system.
- Exceptional Temperature Management: With a cooling capacity of up to 28kW at 33°C, the suite maintains stable performance even in challenging environmental conditions. Its integrated water mist system ensures reliable operation in extreme temperatures up to 42°C.
- Intelligent Energy Optimization: The suite’s EC motor technology dynamically adjusts fan speeds based on ambient temperature, optimizing energy consumption without compromising cooling performance. This feature translates to lower operating costs and improved sustainability.
Space Requirements for Installation
One of the most critical considerations for mining operators is the physical footprint of the [Immersion Cooling Suite]. Efficient use of space is essential, especially in large-scale mining facilities where every square foot counts. Let’s break down the dimensions and layout considerations:
1. Dry Cooler Unit Dimensions

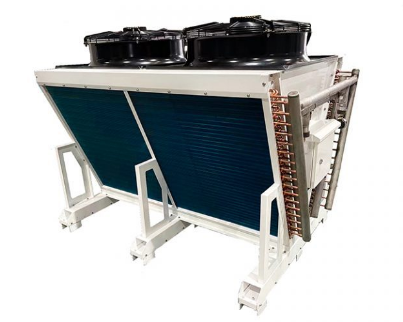

The dry cooler is a central component of the suite, responsible for dissipating heat from the dielectric fluid. Its compact yet robust design measures 1185mm (L) × 530mm (W) × 760mm (H), making it suitable for facilities with limited floor space. Despite its modest dimensions, the dry cooler can support multiple high-performance miners, ensuring efficient thermal management without occupying excessive room.
2. Immersion Tank Specifications

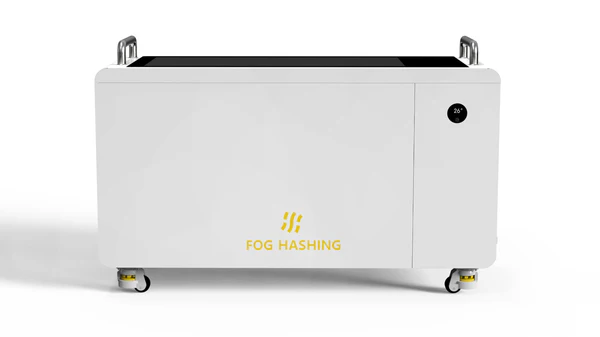

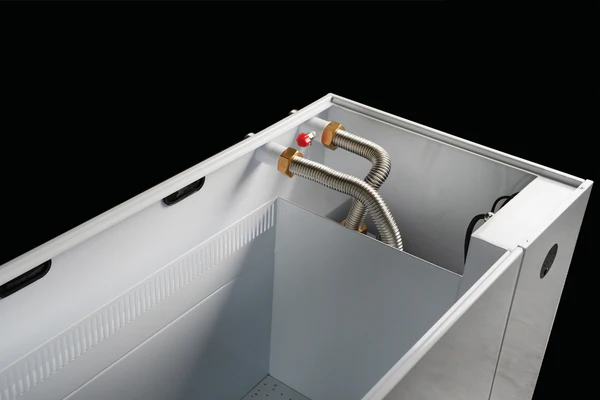

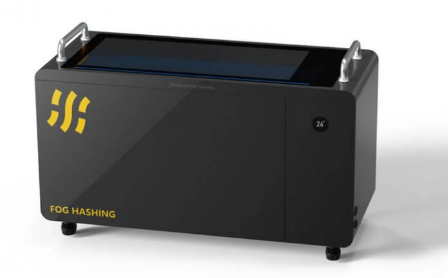

The immersion tank, which houses the mining hardware and dielectric fluid, has internal dimensions of 912mm (L) × 404mm (W) × 355mm (H). This spacious chamber provides ample room for coolant circulation and accommodates up to 6 S19/S21 or 8 M50/M60 mining units. When planning your facility layout, ensure adequate clearance around the tank for maintenance access and proper airflow.
3. Coolant Capacity and Flow Rate
The suite’s 200L coolant capacity ensures consistent thermal performance, even during peak mining activity. The system’s circulation pump delivers a flow rate of 90L/min, maintaining optimal fluid movement to prevent hotspots and ensure even cooling. While the coolant volume doesn’t directly impact space requirements, it’s essential to factor in the location of coolant storage and replenishment points during installation planning.
4. Power and Connectivity
The [Immersion Cooling Suite] operates on single-phase 200-240V power with 50/60Hz frequency compatibility. Its power consumption of 850W at 220V/50Hz is relatively low compared to traditional cooling systems, reducing the strain on your facility’s electrical infrastructure. Ensure that your layout includes accessible power outlets and sufficient space for cable routing.
5. Noise and Ventilation
With a noise profile of just 45dB(A) at 10 meters, the suite operates quietly, making it suitable for facilities where noise reduction is a priority. However, proper ventilation is still essential to maintain optimal performance. Position the dry cooler in an area with good airflow to enhance heat dissipation and prevent overheating.
Practical Applications and Operational Insights
Understanding the space requirements is only part of the equation. To fully appreciate the [Immersion Cooling Suite]’s value, let’s explore how it translates into real-world benefits for mining operators:
- Scalability: The suite’s compact design and high cooling capacity make it ideal for both small-scale and large-scale mining operations. Whether you’re running a few ASICs or managing a full-scale mining farm, this system can be easily scaled to meet your needs.
- Energy Efficiency: By optimizing fan speeds and eliminating the need for secondary heat exchange systems, the suite reduces energy consumption, lowering operational costs and improving profitability.
- Reliability in Extreme Conditions: The integrated water mist system ensures consistent performance even in hot climates, making the suite a reliable choice for mining facilities in diverse environments.
- Ease of Maintenance: The single-loop design and integrated components simplify maintenance, reducing downtime and allowing operators to focus on maximizing mining output.
Planning Your Facility Layout
When incorporating the [Immersion Cooling Suite] into your mining facility, careful planning is essential to maximize space utilization and operational efficiency. Here are some practical tips to guide your setup:
- Measure and Map: Start by measuring the suite’s dimensions and mapping out its placement within your facility. Consider factors such as access points, power connections, and ventilation requirements.
- Optimize Workflow: Position the suite in a location that minimizes the distance between mining hardware and cooling components. This arrangement reduces coolant flow resistance and enhances overall system efficiency.
- Ensure Accessibility: Leave sufficient space around the immersion tank and dry cooler for maintenance and inspection. Easy access to all components will streamline upkeep and prolong the system’s lifespan.
- Plan for Growth: If you anticipate expanding your mining operation, allocate additional space for future cooling units. The modular design of the [Immersion Cooling Suite] allows for straightforward scaling as your needs evolve.
Conclusion
The [Immersion Cooling Suite] represents a significant leap forward in thermal management for cryptocurrency mining. Its innovative design, exceptional performance, and space-efficient footprint make it an invaluable asset for mining operators seeking to enhance efficiency and scalability. By understanding the suite’s space requirements and integrating it thoughtfully into your facility layout, you can unlock its full potential and achieve optimal results in your mining operations.
Whether you’re running a small operation or managing a large-scale mining farm, the [Immersion Cooling Suite] offers a practical, reliable solution to the challenges of heat management. With its advanced features and user-friendly design, this system is poised to become a cornerstone of modern mining facilities.
